Question: Q 6 . ( Optional ) For the following block diagram, compute 3 2 bit branch target address if the PC holds 6 0 0

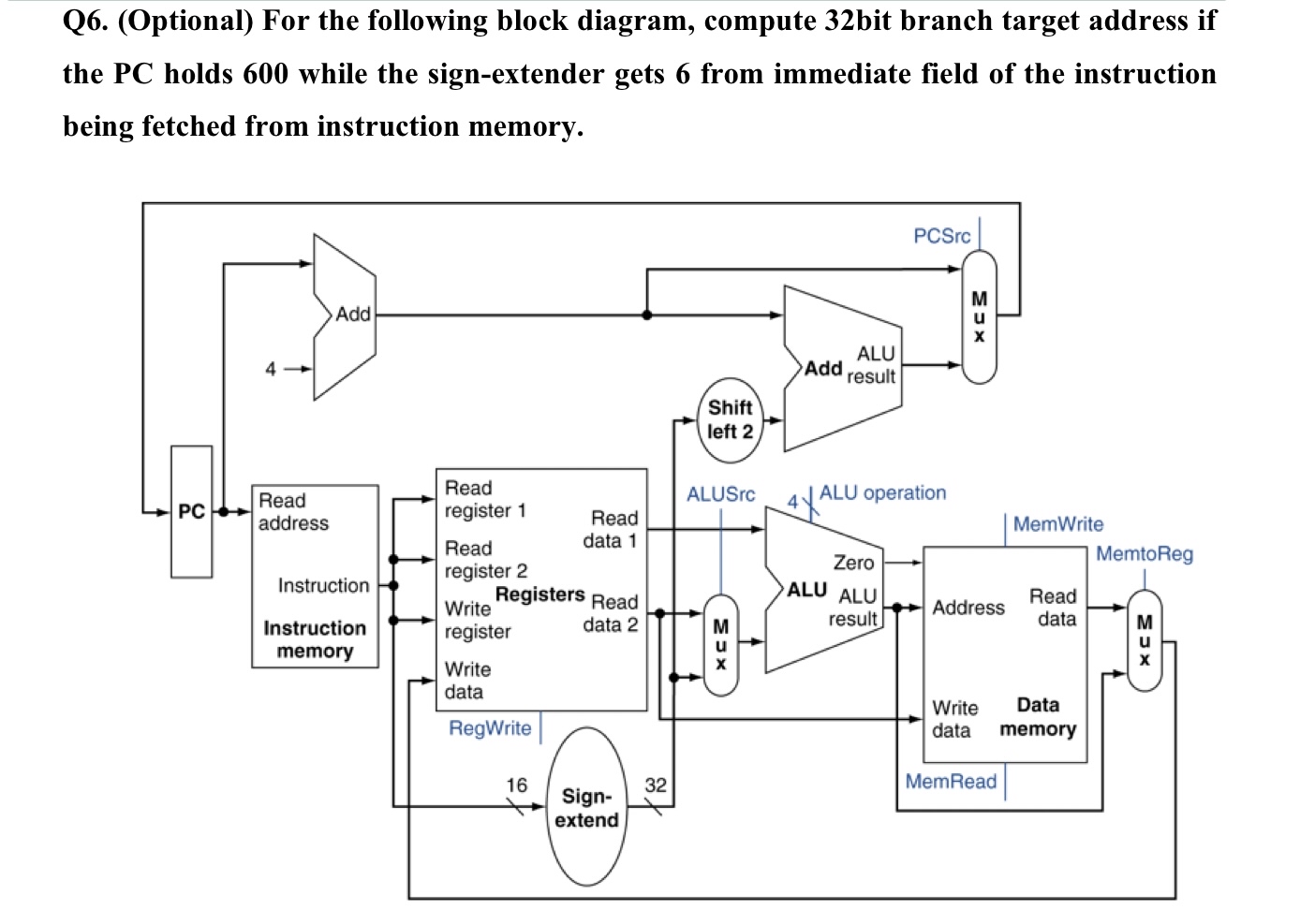

Q6.(Optional) For the following block diagram, compute 32bit branch target address if the PC holds 600 while the sign-extender gets 6 from immediate field of the instruction being fetched from instruction memory.
Q 6 . ( Optional ) For the following block

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
