Question: Q 6 : The 2 - m - wide rectangular gate is pinned at its centre ( A ) and is prevented from

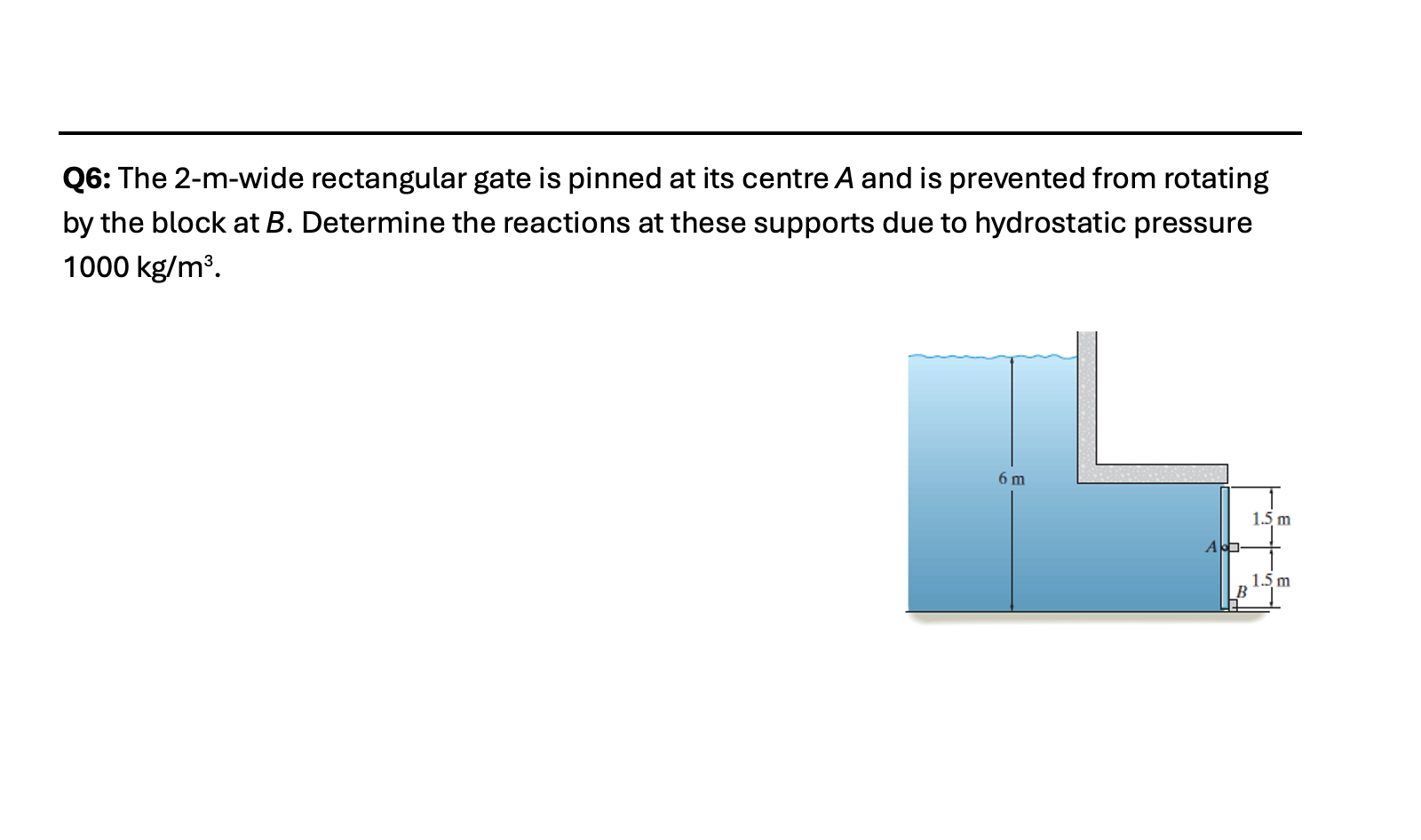

Q6: The 2-m-wide rectangular gate is pinned at its centre \( A \) and is prevented from rotating by the block at \( B \). Determine the reactions at these supports due to hydrostatic pressure 1000 kg/m \({}^{3}\).
Q 6 : The 2 - m - wide rectangular gate is pinned

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
