Question: Q 7 . Find the Critical buckling force ( Euler Formula ) For the Rod Specimen having length 6 0 0 mm , breadth 2

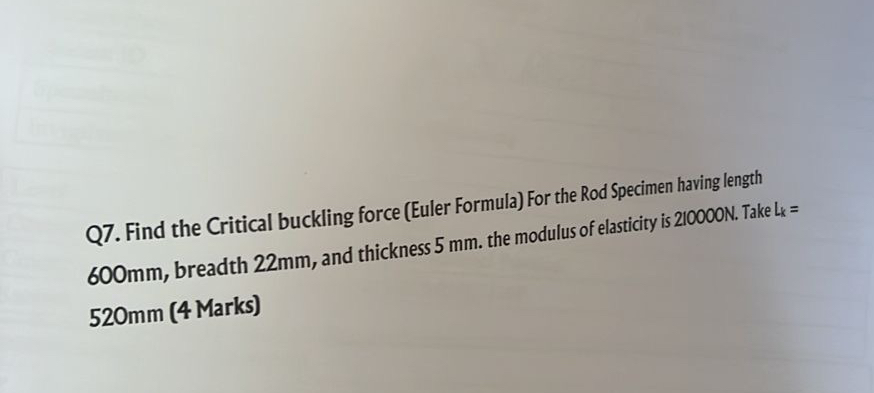

Q7. Find the Critical buckling force (Euler Formula) For the Rod Specimen having length 600 mm , breadth 22 mm , and thickness 5 mm . the modulus of elasticity is 210000 N . Take Lk=520mm (4 Marks)
