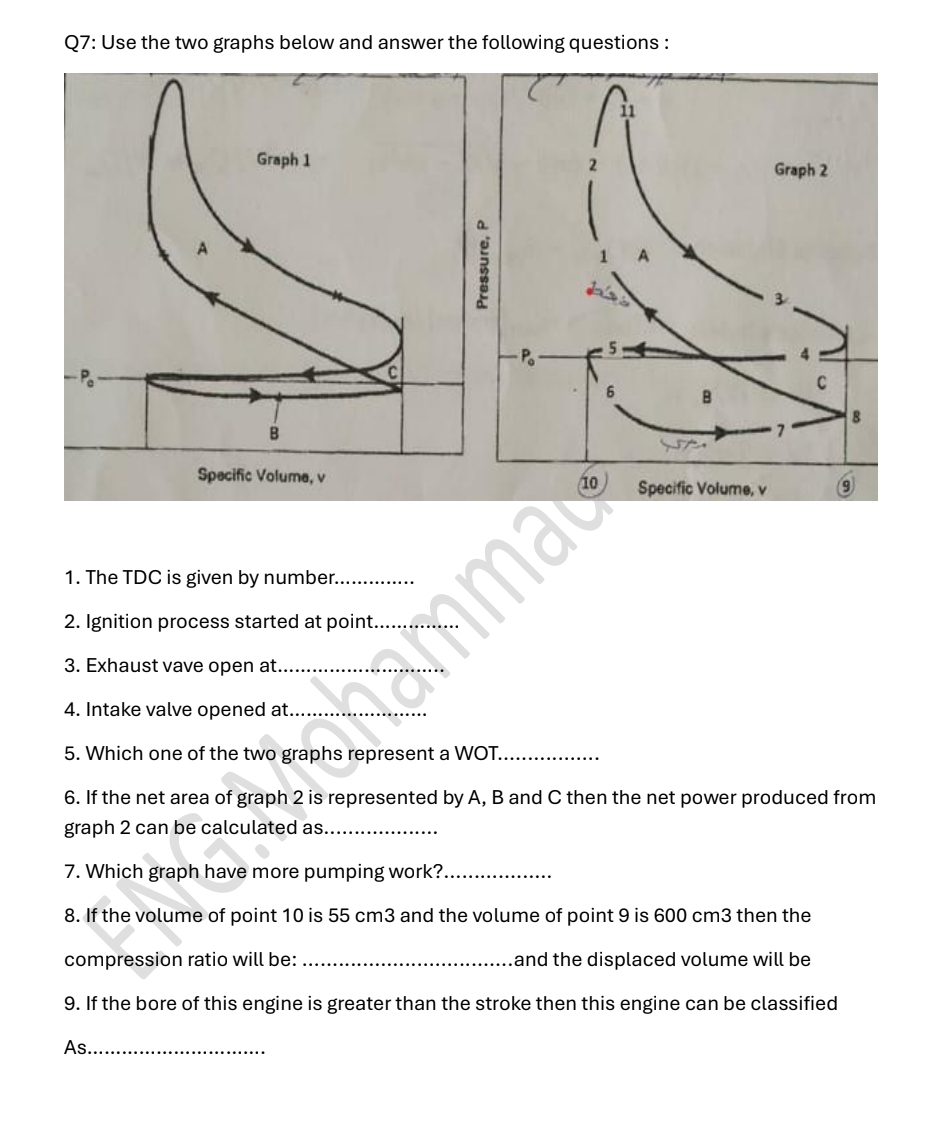

Q$7$: Use the two graphs below and answer the following questions :

Specific Volume, v

$10$

Specific Volume, $v$

The TDC is given by number. $q,$

Ignition process started at point. $q,$

Exhaust vave open at $q,$

Intake valve opened at$.q,$

Which one of the two graphs represent a WOT. $q,$

If the net area of graph $2$ is represented by $A,B$ and C then the net power produced from graph $2$ can be calculated as$.q,$

Which graph have more pumping work? $q,$

If the volume of point $10$ is $55$ cm $3$ and the volume of point $9$ is $600$ cm $3$ then the compression ratio will be: nd the displaced volume will be $9.$ If the bore of this engine is greater than the stroke then this engine can be classified As $q,$
