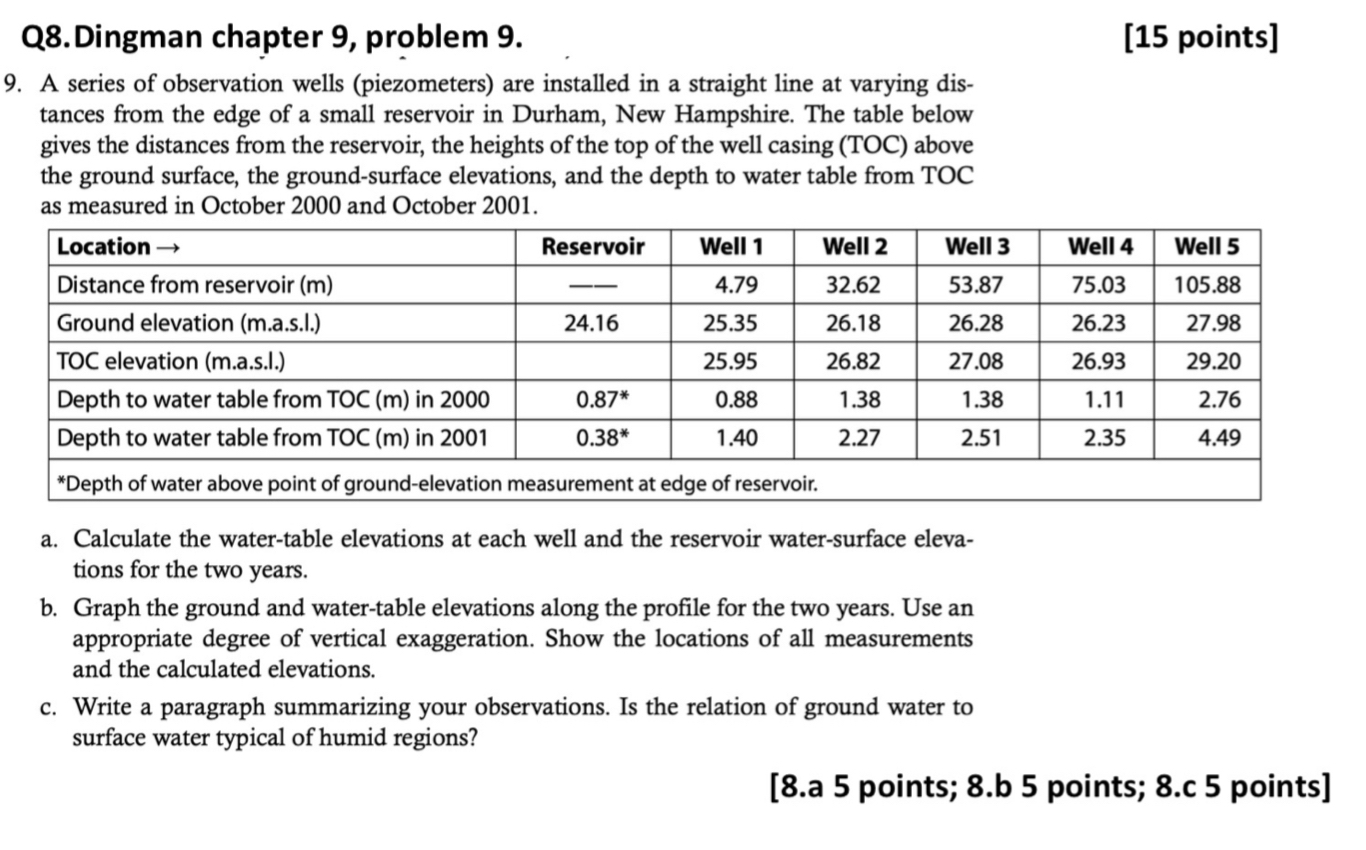

Q$8.$Dingman chapter $9,$ problem $9.$

$[15$ points$]$

$9.$ A series of observation wells $($piezometers$)$ are installed in a straight line at varying distances from the edge of a small reservoir in Durham, New Hampshire. The table below gives the distances from the reservoir, the heights of the top of the well casing $($TOC$)$ above the ground surface, the ground$-$surface elevations, and the depth to water table from TOC as measured in October $2000$ and October $2001.$

$\backslash$table$[[$Location $,$Reservoir,Well $1,$Well $2,$Well $3,$Well $4,$Well $5],[$Distance from reservoir $($ m $),-,4\mathrm{.}79,32\mathrm{.}62,53\mathrm{.}87,75\mathrm{.}03,105\mathrm{.}88],[$Ground elevation $($m$.$a$.$s$.$l$.),24\mathrm{.}16,25\mathrm{.}35,26\mathrm{.}18,26\mathrm{.}28,26\mathrm{.}23,27\mathrm{.}98],[$TOC elevation $($m$.$a$.$s$.$I.$),,25\mathrm{.}95,26\mathrm{.}82,27\mathrm{.}08,26\mathrm{.}93,29\mathrm{.}20],[$Depth to water table from TOC $($m$)$ in $2000,0\mathrm{.}87*,0\mathrm{.}88,1\mathrm{.}38,1\mathrm{.}38,1\mathrm{.}11,2\mathrm{.}76],[$Depth to water table from TOC $($m$)$ in $2001,0\mathrm{.}38*,1\mathrm{.}40,2\mathrm{.}27,2\mathrm{.}51,2\mathrm{.}35,4\mathrm{.}49],[*$Depth of water above point of ground$-$elevation measurement at edge of reservoir.$]]$

a$.$ Calculate the water$-$table elevations at each well and the reservoir water$-$surface elevations for the two years.

b$.$ Graph the ground and water$-$table elevations along the profile for the two years. Use an appropriate degree of vertical exaggeration. Show the locations of all measurements and the calculated elevations.

c$.$ Write a paragraph summarizing your observations. Is the relation of ground water to surface water typical of humid regions?

$[8.$a $5$ points; $8.b5$ points; $8.c5$ points$]$
