Question: Q . A version of the one - dimensional elliptic equation that occurs in Mechanics is the following model for the vertical deflection of a

Q.

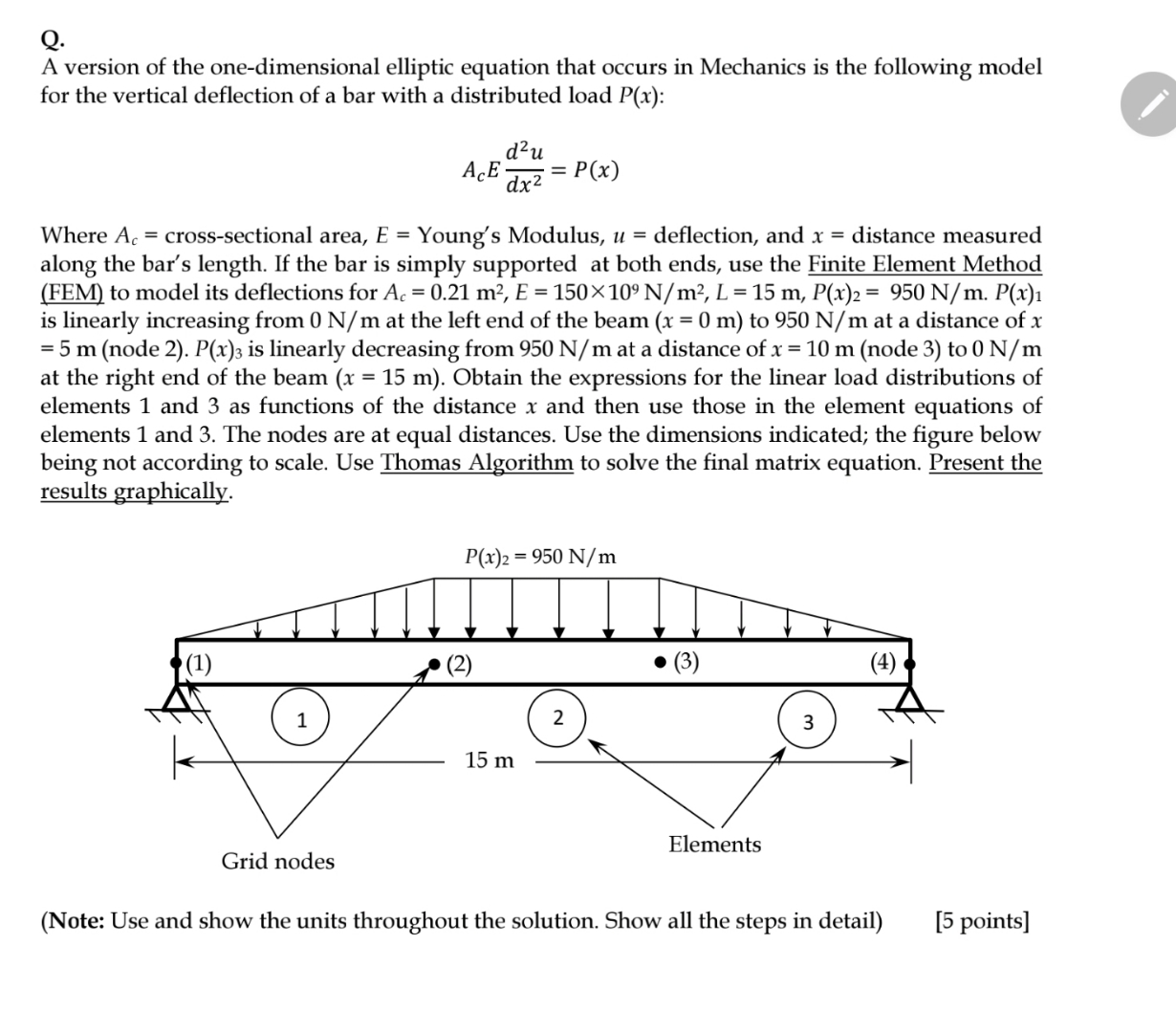

A version of the one-dimensional elliptic equation that occurs in Mechanics is the following model for the vertical deflection of a bar with a distributed load P(x) :
AcEd2udx2=P(x)
Where Ac= cross-sectional area, E= Young's Modulus, u= deflection, and x= distance measured along the bar's length. If the bar is simply supported at both ends, use the Finite Element Method (FEM) to model its deflections for Ac=0.21m2,E=150109Nm2,L=15m,P(x)2=950Nm.P(x)1 is linearly increasing from 0Nm at the left end of the beam
