Q1. Create a System sequence diagram(SSD) and sequence diagram from the above event table.

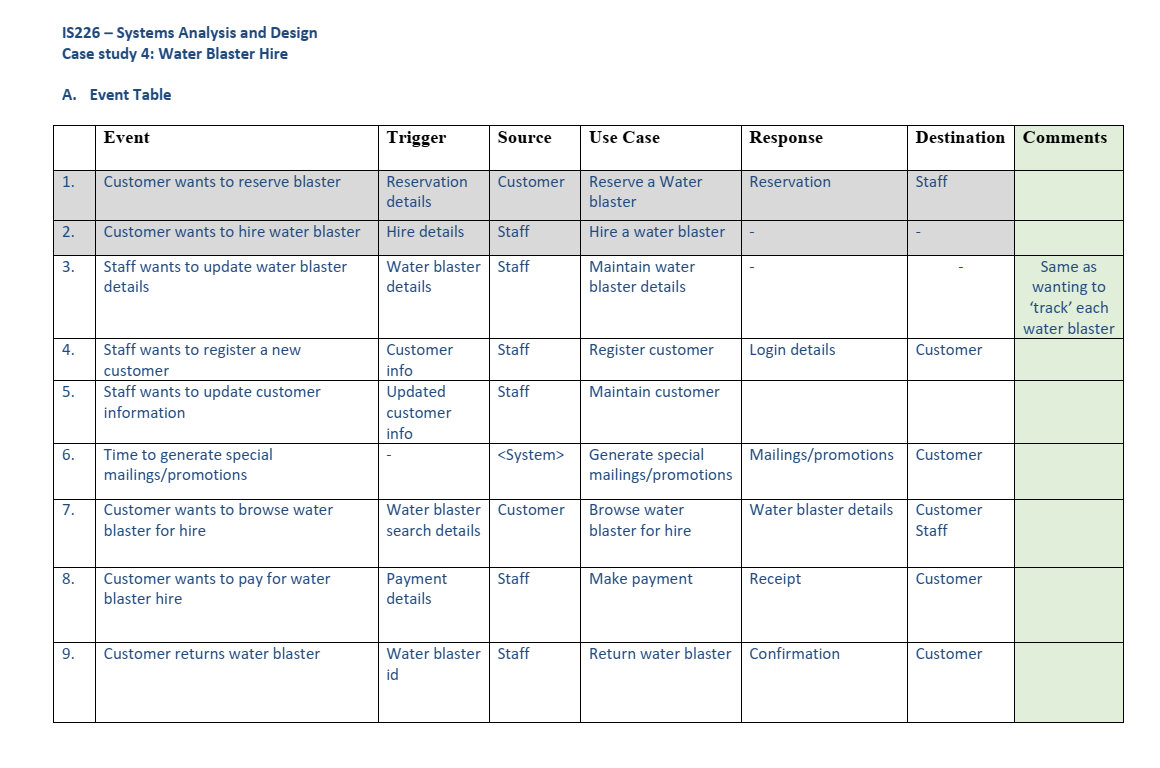

IS226 - Systems Analysis and Design Case study 4: Water Blaster Hire A. Event Table Event Trigger Source Use Case Response Destination Comments 1. Customer wants to reserve blaster Customer Reservation Staff Reservation details Reserve a Water blaster 2. Customer wants to hire water blaster Hire details Staff Hire a water blaster 3. Staff wants to update water blaster details Water blaster Staff details Maintain water blaster details Same as wanting to 'track' each water blaster 4. Staff Register customer Login details Customer Staff wants to register a new customer Staff wants to update customer information 5. Customer info Updated customer info Staff Maintain customer 6. Mailings/promotions Customer Time to generate special mailings/promotions Generate special mailings/promotions 7. Customer Water blaster details Customer wants to browse water blaster for hire Water blaster search details Browse water blaster for hire Customer Staff 8. Payment Staff Make payment Receipt Customer wants to pay for water blaster hire Customer details 9. Customer returns water blaster Return water blaster Confirmation Water blaster Staff id Customer IS226 - Systems Analysis and Design Case study 4: Water Blaster Hire A. Event Table Event Trigger Source Use Case Response Destination Comments 1. Customer wants to reserve blaster Customer Reservation Staff Reservation details Reserve a Water blaster 2. Customer wants to hire water blaster Hire details Staff Hire a water blaster 3. Staff wants to update water blaster details Water blaster Staff details Maintain water blaster details Same as wanting to 'track' each water blaster 4. Staff Register customer Login details Customer Staff wants to register a new customer Staff wants to update customer information 5. Customer info Updated customer info Staff Maintain customer 6. Mailings/promotions Customer Time to generate special mailings/promotions Generate special mailings/promotions 7. Customer Water blaster details Customer wants to browse water blaster for hire Water blaster search details Browse water blaster for hire Customer Staff 8. Payment Staff Make payment Receipt Customer wants to pay for water blaster hire Customer details 9. Customer returns water blaster Return water blaster Confirmation Water blaster Staff id Customer
