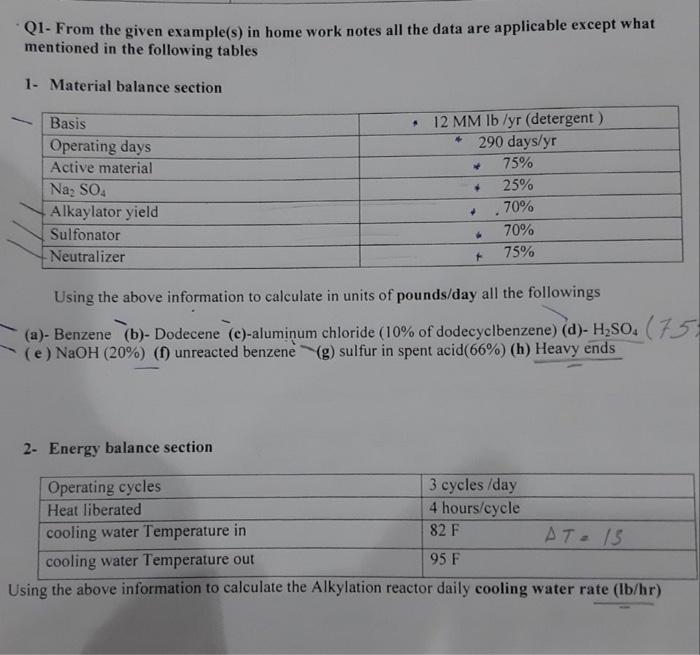

Q1- From the given example(s) in home work notes all the data are applicable except what mentioned in the following tables 1- Material balance section . Basis Operating days Active material Na, SO4 Alkaylator yield Sulfonator Neutralizer 12 MM lb /yr (detergent) 290 days/yr 75% 25% + . 70% 70% 75% Using the above information to calculate in units of pounds/day all the followings (a)- Benzene (b)- Dodecene (c)-aluminum chloride (10% of dodecyclbenzene) (a)- H2SO. (75 (e) NaOH (20%) (f) unreacted benzene (g) sulfur in spent acid(66%) (h) Heavy ends 2- Energy balance section Operating cycles 3 cycles/day Heat liberated 4 hours/cycle cooling water Temperature in 82 F AT = 15 cooling water Temperature out 95 F Using the above information to calculate the Alkylation reactor daily cooling water rate (lb/hr) Q1- From the given example(s) in home work notes all the data are applicable except what mentioned in the following tables 1- Material balance section . Basis Operating days Active material Na, SO4 Alkaylator yield Sulfonator Neutralizer 12 MM lb /yr (detergent) 290 days/yr 75% 25% + . 70% 70% 75% Using the above information to calculate in units of pounds/day all the followings (a)- Benzene (b)- Dodecene (c)-aluminum chloride (10% of dodecyclbenzene) (a)- H2SO. (75 (e) NaOH (20%) (f) unreacted benzene (g) sulfur in spent acid(66%) (h) Heavy ends 2- Energy balance section Operating cycles 3 cycles/day Heat liberated 4 hours/cycle cooling water Temperature in 82 F AT = 15 cooling water Temperature out 95 F Using the above information to calculate the Alkylation reactor daily cooling water rate (lb/hr)
