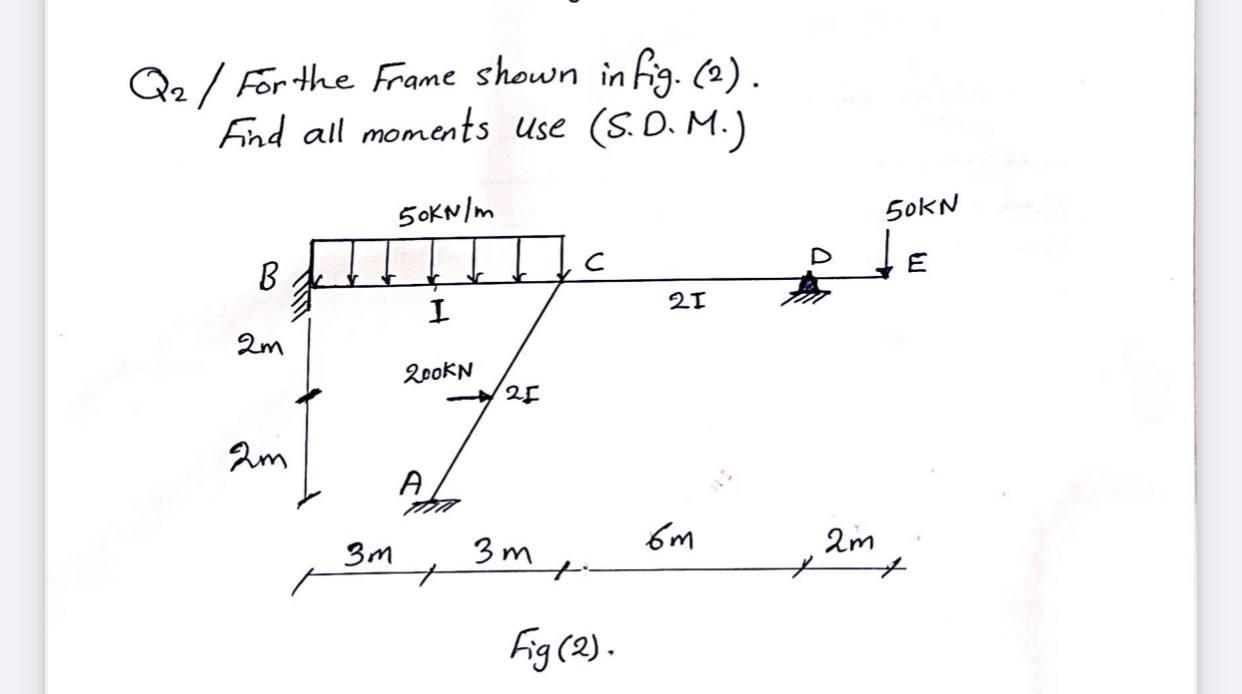

Question: Q2 / For the frame shown in fig . (2). find all moments Use (S. D. M.) 5KN/m 50kn E B 21 I 2m 200KN

Q2 / For the frame shown in fig . (2). find

Q2 / For the frame shown in fig . (2). find all moments Use (S. D. M.) 5KN/m 50kn E B 21 I 2m 200KN 21 2m A TT 6m 3m 3m 2m + + Fig(2). Q2 / For the frame shown in fig . (2). find all moments Use (S. D. M.) 5KN/m 50kn E B 21 I 2m 200KN 21 2m A TT 6m 3m 3m 2m + + Fig(2)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
