Question: QQuestion 1 6 ( 3 . 7 points ) Determine I x for the following circuit using nodal analysis when I 1 = 1 2

QQuestion 16(3.7 points)

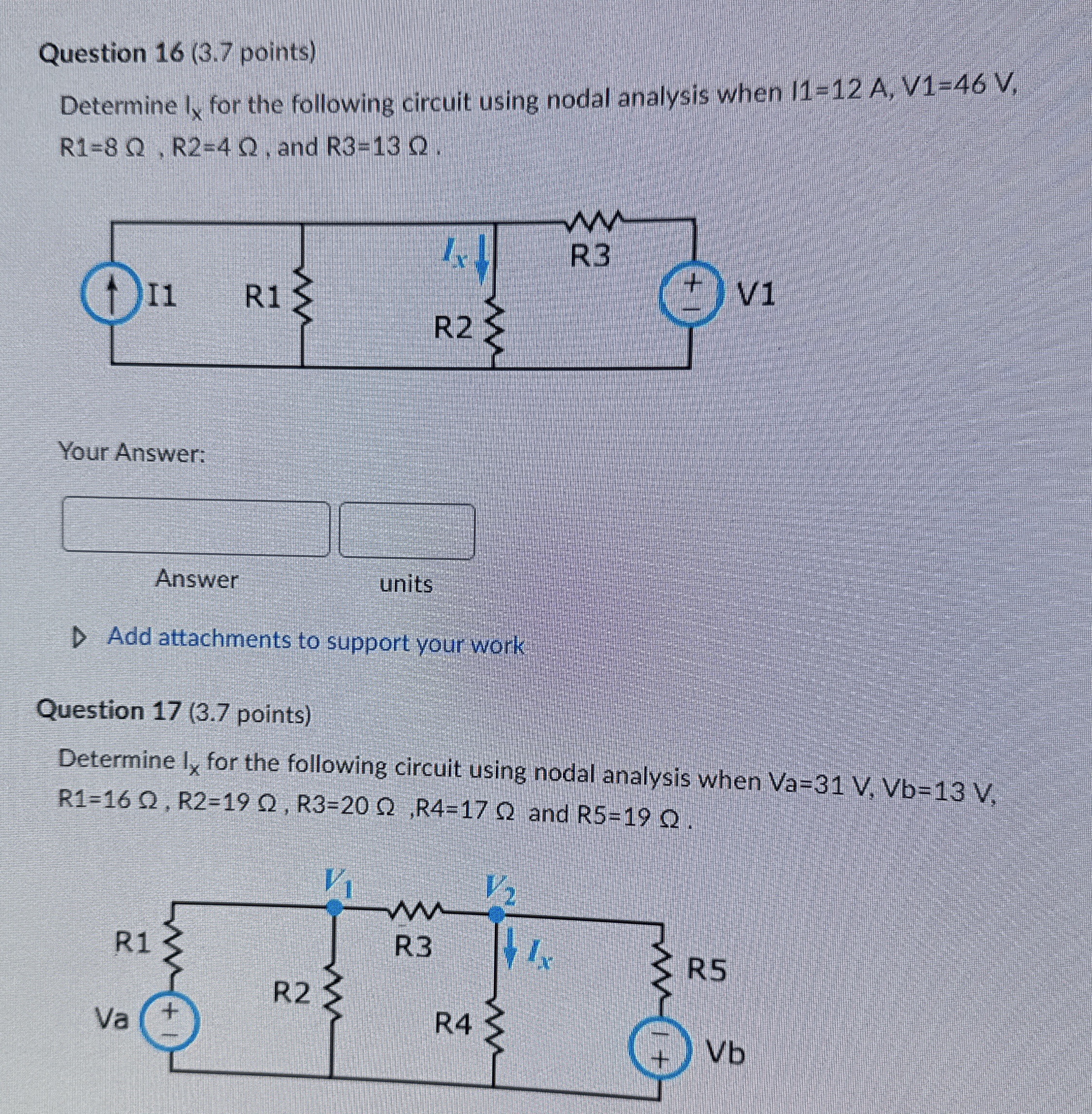

Determine Ix for the following circuit using nodal analysis when I1=12A,V1=46V,R1=8,R2=4, and R3=13.
Question 17(3.7 points)
Determine Ix for the following circuit using nodal analysis when Va=31V,Vb=13V,R1=16,R2=19,R3=20,R4=17 and R5=19.
QQuestion 1 6 ( 3 . 7 points ) Determine I x for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
