Question:
![image text in transcribed](https://s3.amazonaws.com/si.experts.images/answers/2024/05/6648521f79bb4_6476648521f04f55.jpg)
Transcribed Image Text:

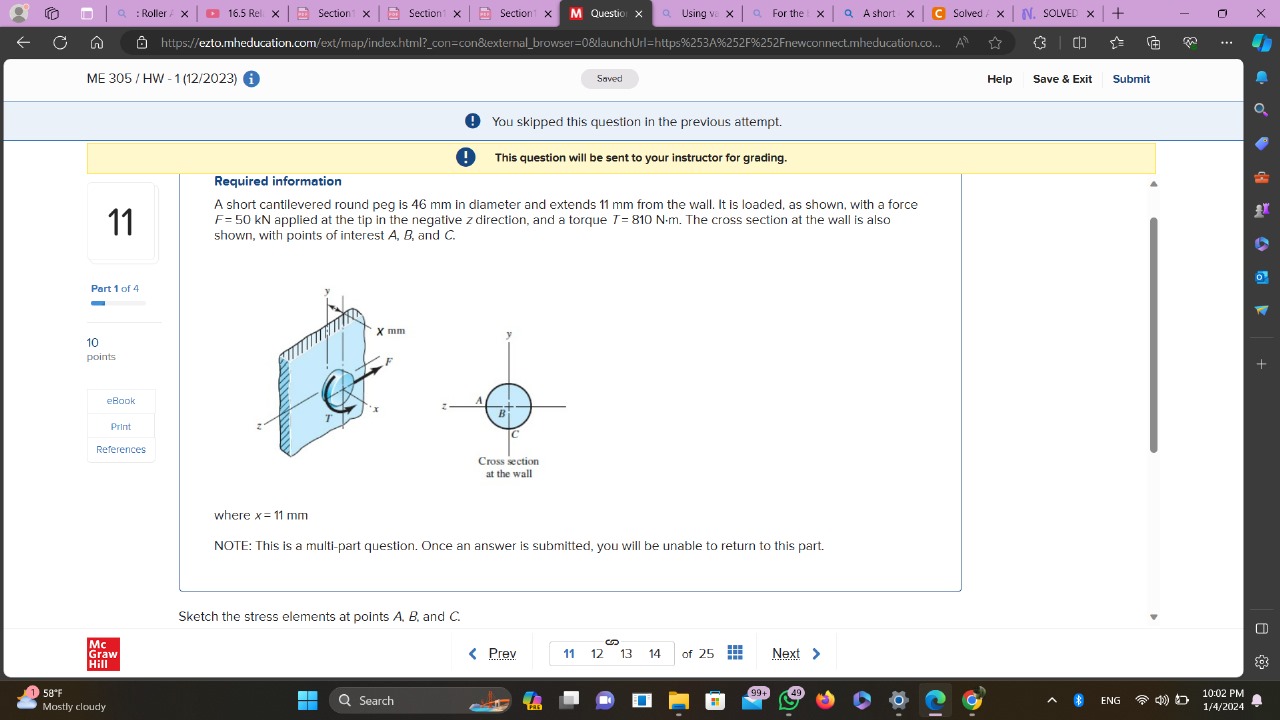

Q:Roller x 16.5 Rel xSection x Section1 x Section X M Question X Using va x For the x A short xC Solved x N. SOLVED X + https://ezto.mheducation.com/ext/map/index.html?_con-con&external_browser=0&launchUrl=https%253A%252F%252Fnewconnect.mheducation.co... A ME 305/HW - 1 (12/2023) Saved Help Save & Exit Submit 11 Part 1 of 4 10 points eBook Print References Mc Graw Hill 58F Mostly cloudy You skipped this question in the previous attempt. This question will be sent to your instructor for grading. Required information A short cantilevered round peg is 46 mm in diameter and extends 11 mm from the wall. It is loaded, as shown, with a force F= 50 kN applied at the tip in the negative z direction, and a torque 7-810 N-m. The cross section at the wall is also shown, with points of interest A, B, and C. X mm Cross section at the wall where x=11 mm NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Sketch the stress elements at points A, B, and C. Search < Prev 11 12 13 14 of 25 Next > 49 ENG 10:02 PM 1/4/2024 + Q:Roller x 16.5 Rel xSection x Section1 x Section X M Question X Using va x For the x A short xC Solved x N. SOLVED X + https://ezto.mheducation.com/ext/map/index.html?_con-con&external_browser=0&launchUrl=https%253A%252F%252Fnewconnect.mheducation.co... A ME 305/HW - 1 (12/2023) Saved Help Save & Exit Submit 11 Part 1 of 4 10 points eBook Print References Mc Graw Hill 58F Mostly cloudy You skipped this question in the previous attempt. This question will be sent to your instructor for grading. Required information A short cantilevered round peg is 46 mm in diameter and extends 11 mm from the wall. It is loaded, as shown, with a force F= 50 kN applied at the tip in the negative z direction, and a torque 7-810 N-m. The cross section at the wall is also shown, with points of interest A, B, and C. X mm Cross section at the wall where x=11 mm NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Sketch the stress elements at points A, B, and C. Search < Prev 11 12 13 14 of 25 Next > 49 ENG 10:02 PM 1/4/2024 +
