Question: Question # 0 1 Determine the support reactions for the truss and find the forces in members FH , BD , and DG of the

Question # 01

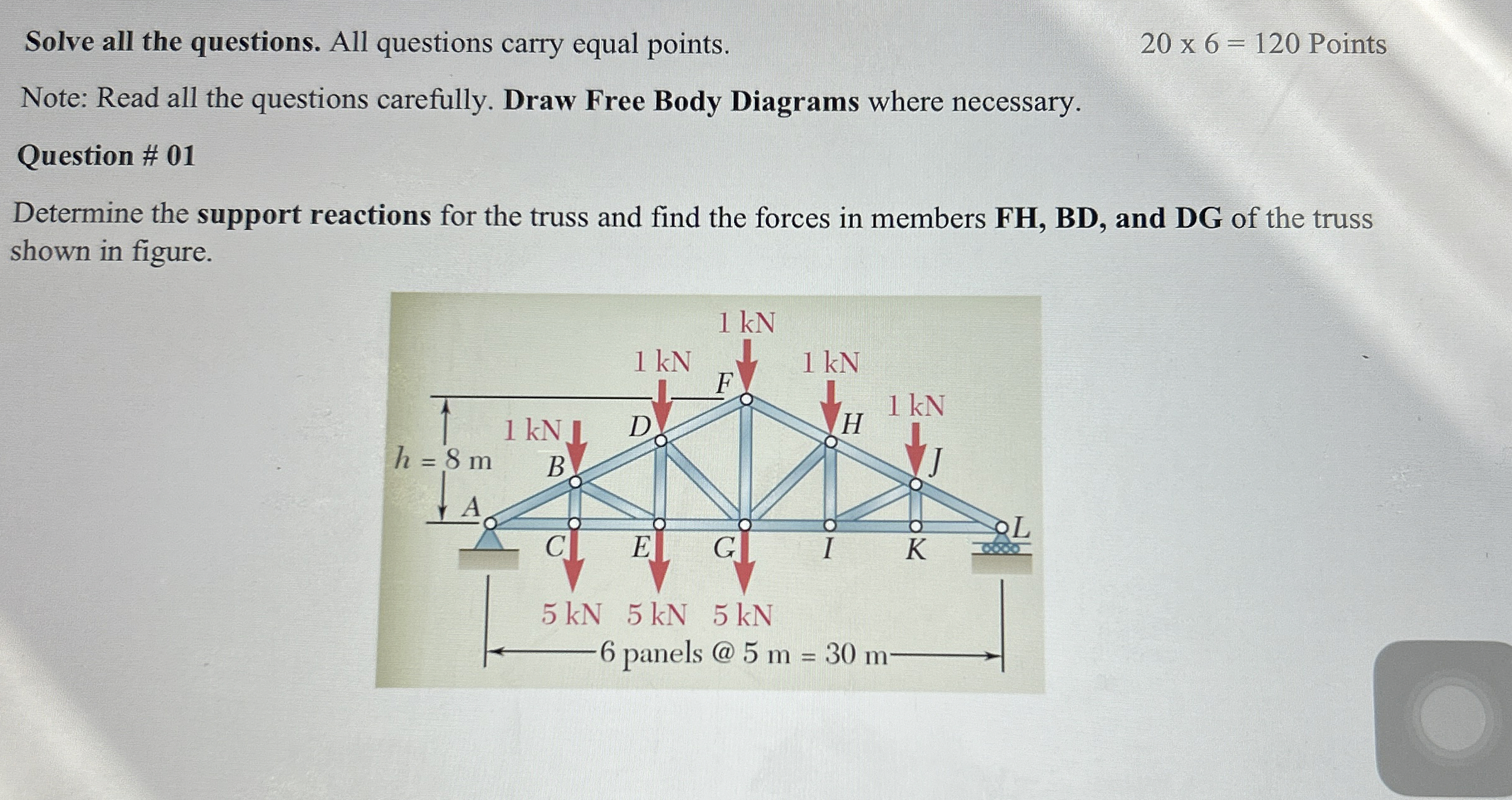

Determine the support reactions for the truss and find the forces in members FH, BD, and DG of the truss shown in figure.
Question # 0 1 Determine the support reactions

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
