Question: Question 0 3 : ( a ) Assume V G S = - 2 . 0 V for the circuit in Figure 0 3 .

Question 03:

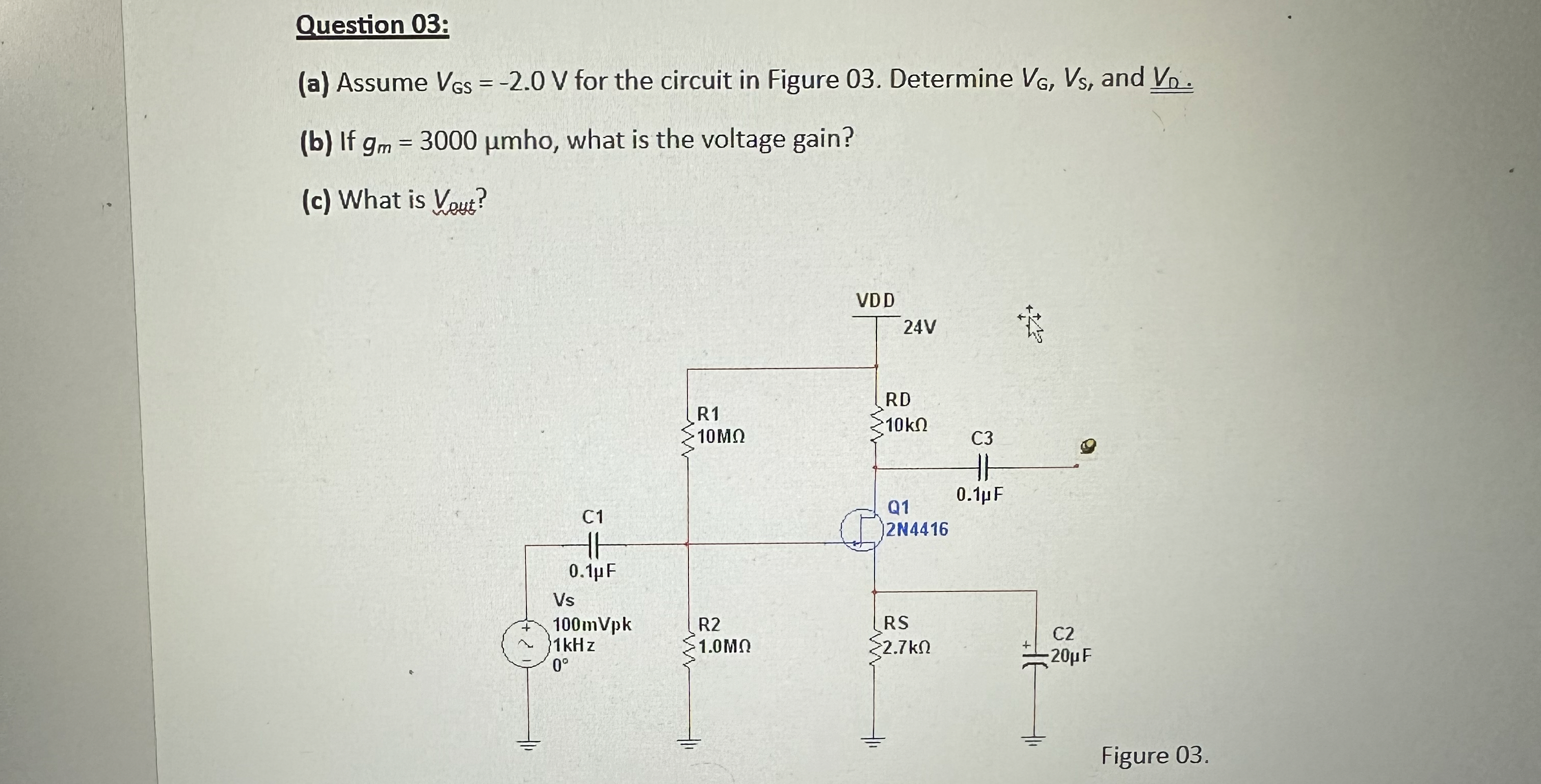

(a) Assume VGS=-2.0V for the circuit in Figure 03. Determine VG,VS, and V0???
(b) If gm=3000mho, what is the voltage gain?
(c) What is Vputs?
Question 0 3 : ( a ) Assume V G S = - 2 . 0 V for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
