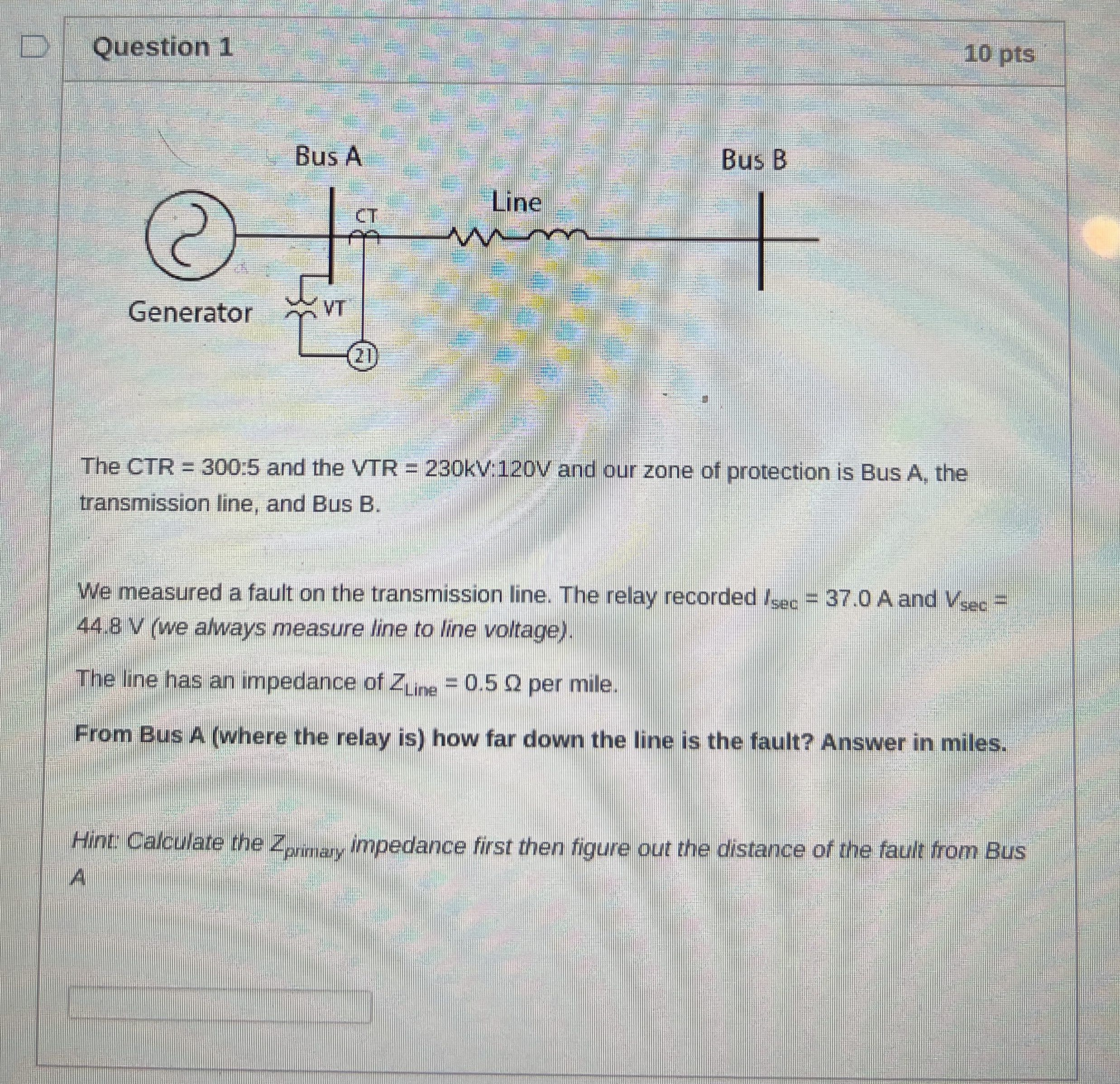

Question $1$

$10$ pts

The CTR $=300$:$5$ and the $VTR=230KV$:$120V$ and our zone of protection is Bus A $,$ the transmission line, and Bus B$.$

We measured a fault on the transmission line. The relay recorded $I_{sec}=37\mathrm{.}0$A and $V_{sec}=44\mathrm{.}8$ V $($we always measure line to line voltage$).$

The line has an impedance of $Z_{\text{L}\text{i}\text{n}\text{e}}=0\mathrm{.}5$ per mile.

From Bus A $($where the relay is$)$ how far down the line is the fault? Answer in miles.

Hint: Calculate the $Z_{\text{p}\text{r}\text{i}\text{m}\text{a}\text{r}\text{y}}$ impedance first then figure out the distance of the fault from Bus A
