Question $1$

$(15$ points$)$

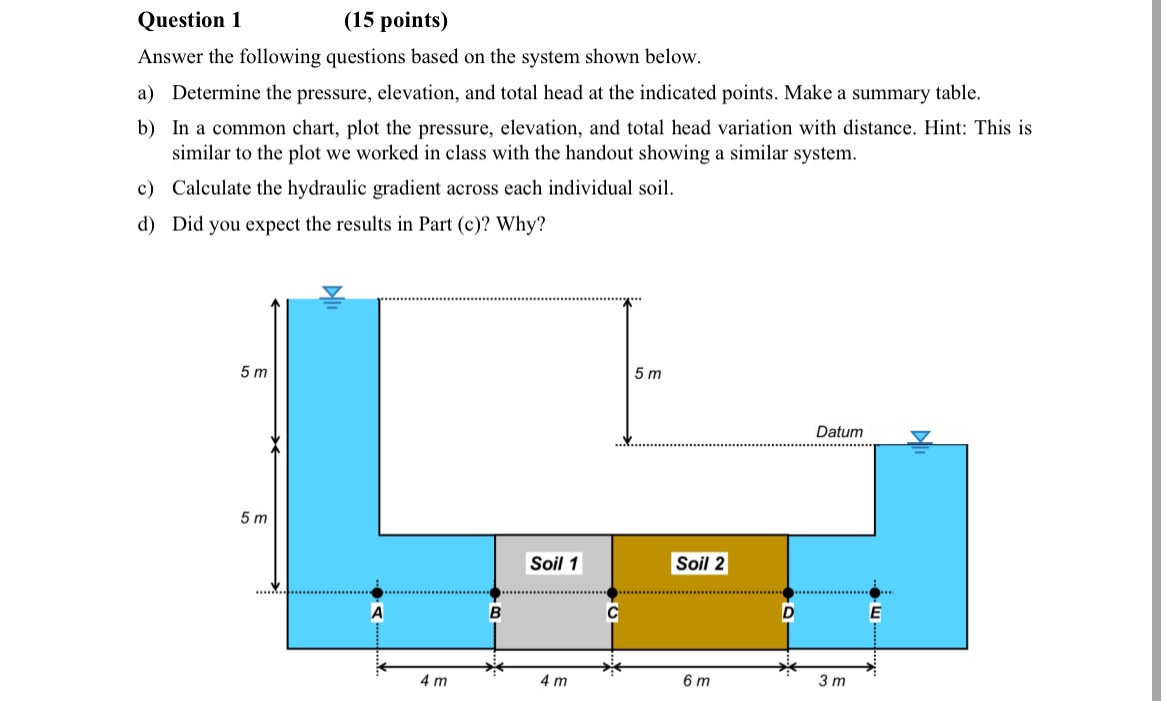

Answer the following questions based on the system shown below.

a$)$ Determine the pressure, elevation, and total head at the indicated points. Make a summary table.

b$)$ In a common chart, plot the pressure, elevation, and total head variation with distance. Hint: This is similar to the plot we worked in class with the handout showing a similar system.

c$)$ Calculate the hydraulic gradient across each individual soil.

d$)$ Did you expect the results in Part $($c$)?$ Why?
