Question: QUESTION 1 ( 1 6 MARKS ) A rod is supported by smooth journal bearing at A , B and C and is subjected to

QUESTION 1(16 MARKS)
A rod is supported by smooth journal bearing at A, B and C and is subjected to two
forces as shown in Figure 1. Determine the reactions at these supports.
[16 Marks]

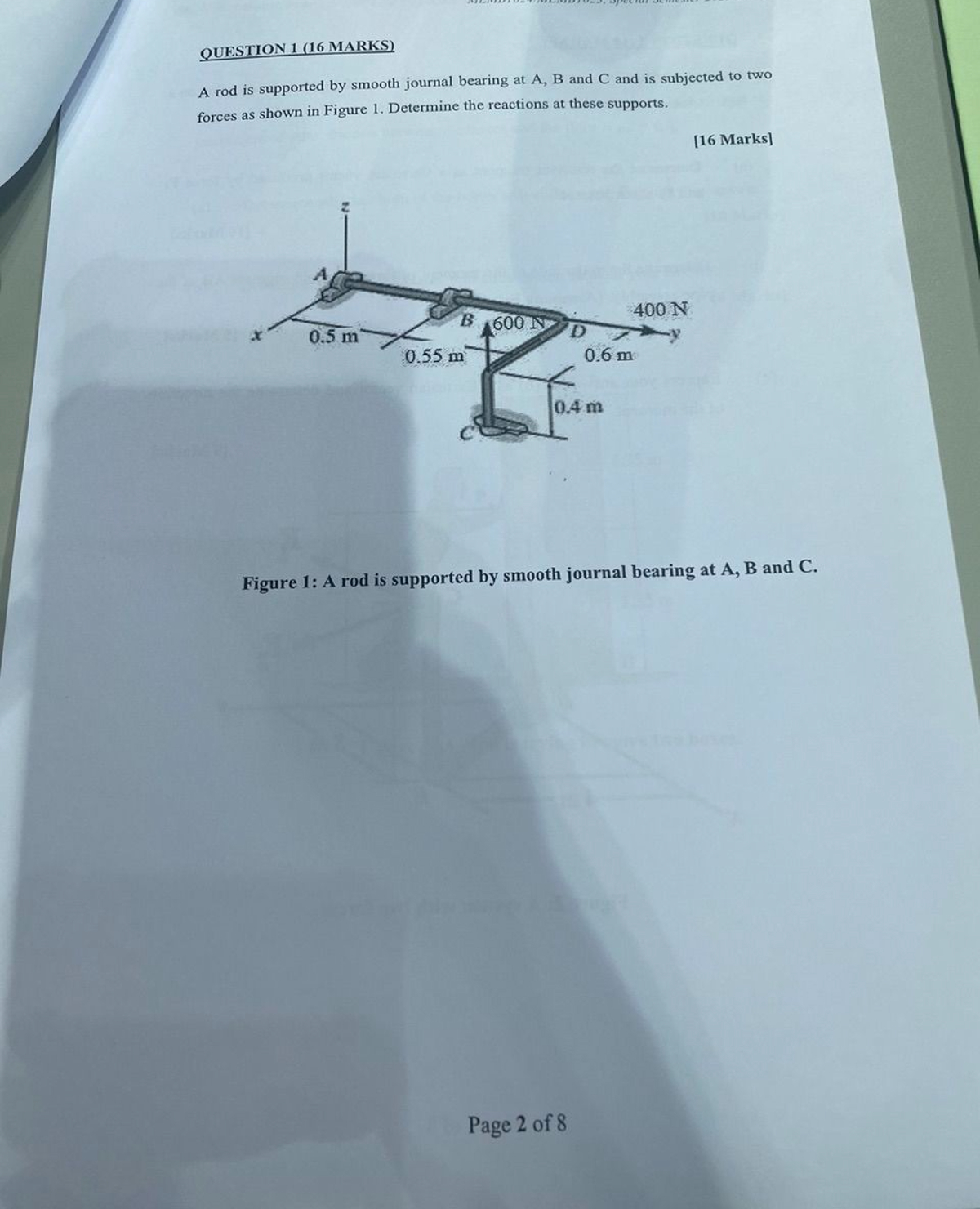

Figure 1: A rod is supported by smooth journal bearing at A, B and C.
QUESTION 1 ( 1 6 MARKS ) A rod is supported by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
