Question: QUESTION 1. (10 points) a) Timer_A is using a 500 KHz (500,000 Hz) clock signal. What is the timer's period (in seconds) if the continuous

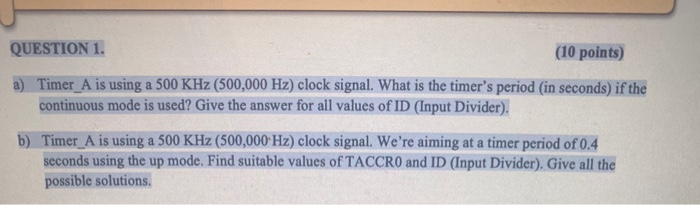

QUESTION 1. (10 points) a) Timer_A is using a 500 KHz (500,000 Hz) clock signal. What is the timer's period (in seconds) if the continuous mode is used? Give the answer for all values of ID (Input Divider). b) Timer_A is using a 500 KHz (500,000 Hz) clock signal. We're aiming at a timer period of 0.4 seconds using the up mode. Find suitable values of TACCRO and ID (Input Divider). Give all the possible solutions
