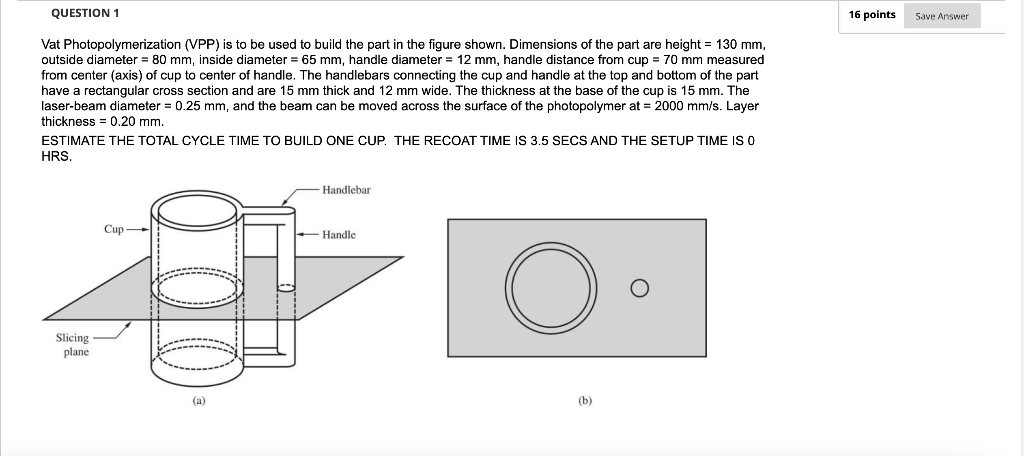

QUESTION 1 16 points Save Answer Vat Photopolymerization (VPP) is to be used to build the part in the figure shown. Dimensions of the part are height = 130 mm, outside diameter = 80 mm, inside diameter = 65 mm, handle diameter = 12 mm, handle distance from cup = 70 mm measured from center (axis) of cup to center of handle. The handlebars connecting the cup and handle at the top and bottom of the part have a rectangular cross section and are 15 mm thick and 12 mm wide. The thickness at the base of the cup is 15 mm. The laser-beam diameter = 0.25 mm, and the beam can be moved across the surface of the photopolymer at = 2000 mm/s. Layer thickness = 0.20 mm. ESTIMATE THE TOTAL CYCLE TIME TO BUILD ONE CUP. THE RECOAT TIME IS 3.5 SECS AND THE SETUP TIME IS O HRS. Handlebar Cup Handle O Slicing plane (a) (b)
