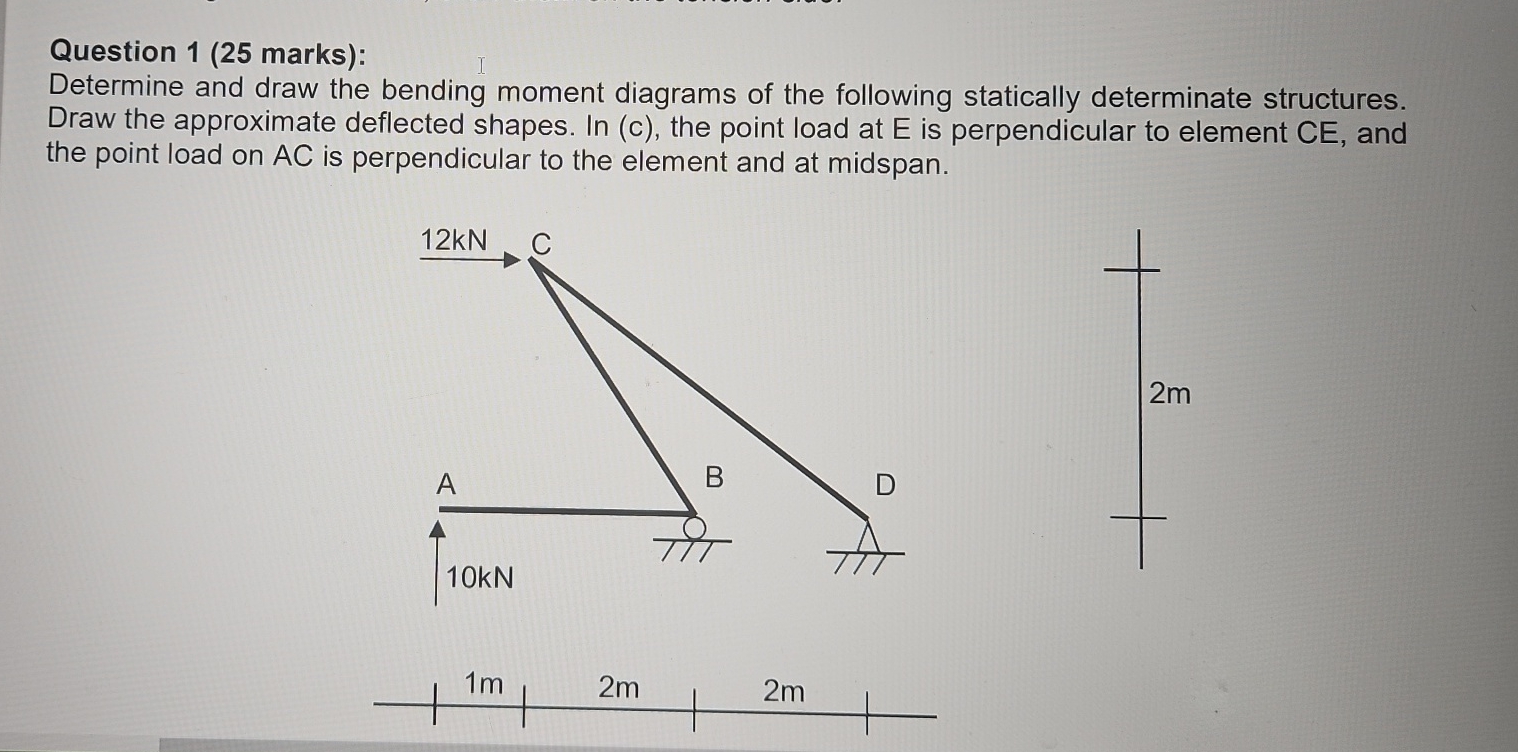

Question $1(25$ marks$)$:

Determine and draw the bending moment diagrams of the following statically determinate structures. Draw the approximate deflected shapes. In $($c$),$ the point load at E is perpendicular to element CE$,$ and the point load on $AC$ is perpendicular to the element and at midspan. also if possible draw the bending moments on the tension side of members
