Question: Question 1 ( 2 points ) Determine if the structures shown below are determinate, indeterminate, or unstable. If indeterminate, specify the degree of indeterminacy and

Question

1 (2

points

)

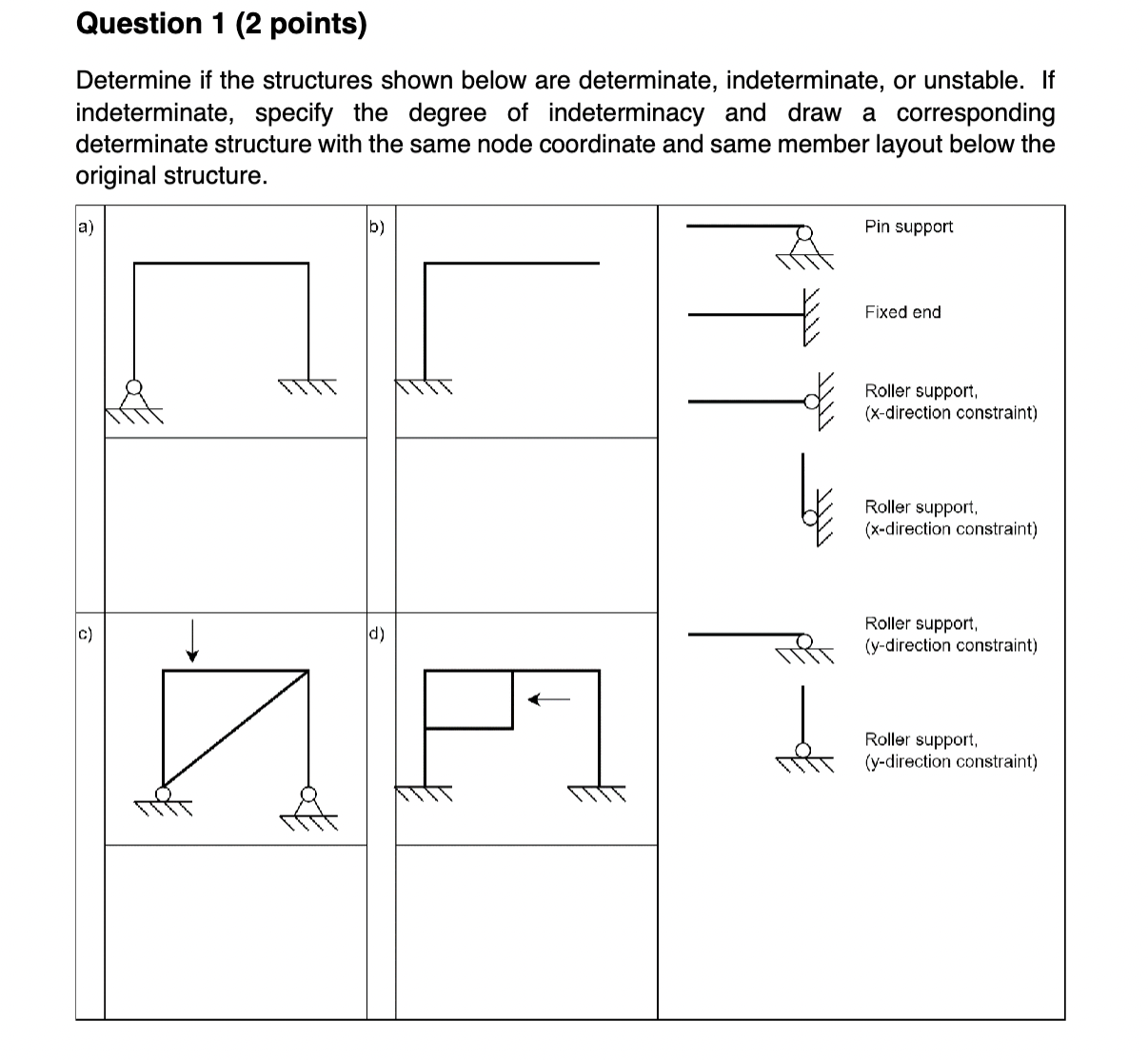

Determine if the structures shown below are determinate, indeterminate, or unstable. If indeterminate, specify the degree of indeterminacy and draw a corresponding determinate structure with the same node coordinate and same member layout below the original structure.

Question 1 ( 2 points ) Determine if the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
