Question: Question 1 (2 points) The simple truss shown has the following dimensions: H1 = 1.80 in; H2 = 0.85 in; L0 = 32 in;

Question 1 (2 points) The simple truss shown has the following dimensions:

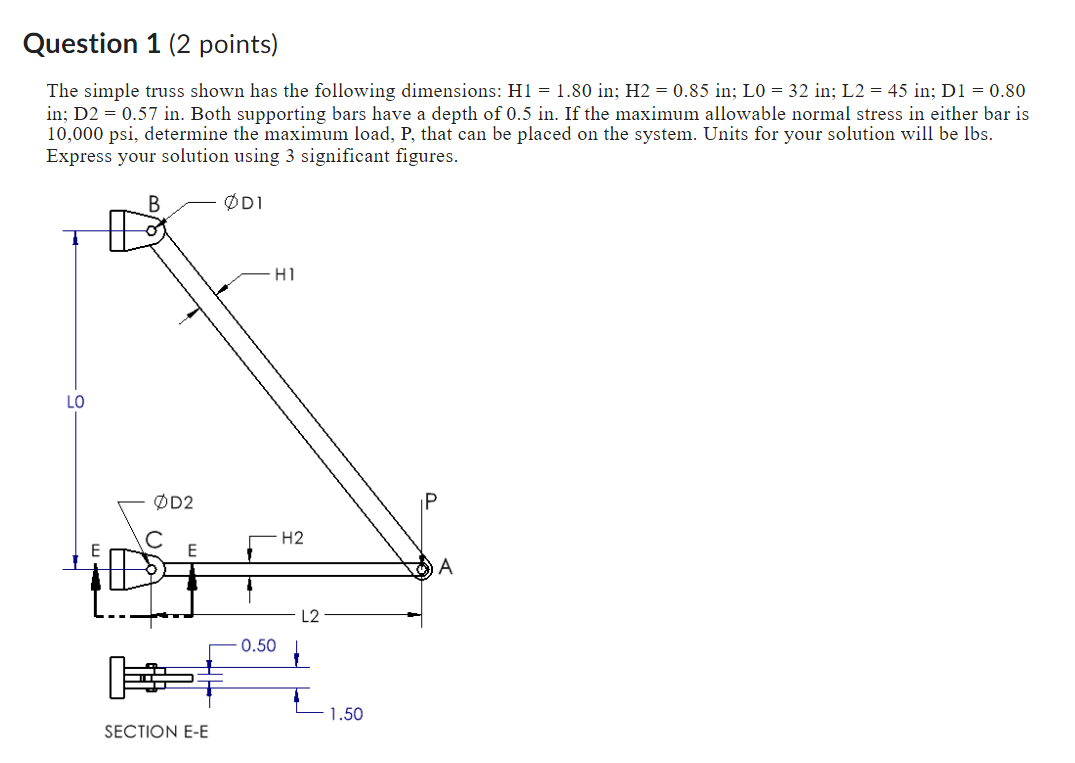

Question 1 (2 points) The simple truss shown has the following dimensions: H1 = 1.80 in; H2 = 0.85 in; L0 = 32 in; L2 = 45 in; D1 = 0.80 in; D2 = 0.57 in. Both supporting bars have a depth of 0.5 in. If the maximum allowable normal stress in either bar is 10,000 psi, determine the maximum load, P, that can be placed on the system. Units for your solution will be lbs. Express your solution using 3 significant figures. LO B DI D2 E 0.50 H1 H2 A L2 1.50 SECTION E-E
