Question: Question 1 3 : In the frame: a ) Estimate the distance h of the system given below to satisfy the bending moment at section

Question 13: In the frame:

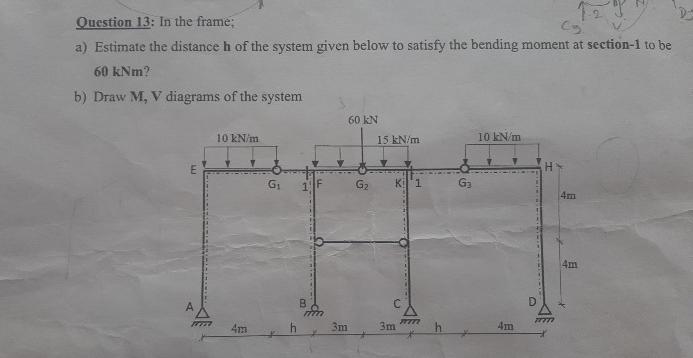

a) Estimate the distance h of the system given below to satisfy the bending moment at section-1 to be 60kNm?
b) Draw M,V diagrams of the system
Question 1 3 : In the frame: a ) Estimate the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
