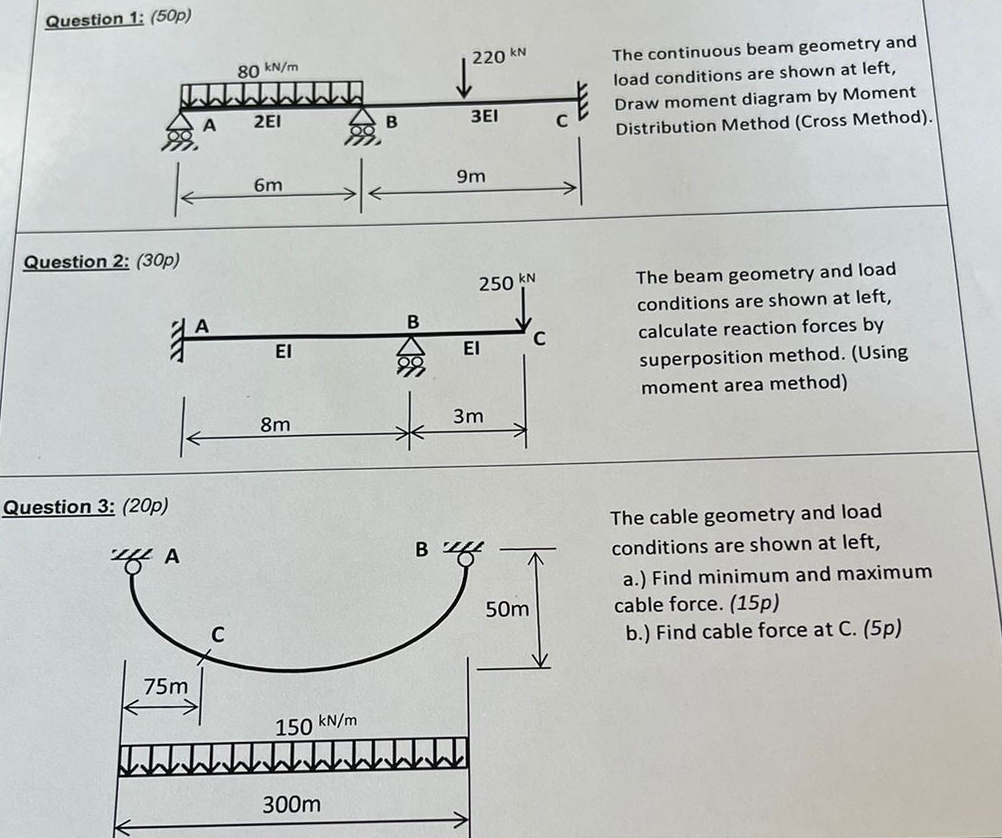

Question $1$: $(50$p$)$

The continuous beam geometry and load conditions are shown at left, Draw moment diagram by Moment Distribution Method $($Cross Method$).$

Question $2$: $(30$p$)$

The beam geometry and load conditions are shown at left, calculate reaction forces by superposition method. $($Using moment area method$)$

Questinn $2.100n1$

The cable geometry and load conditions are shown at left,

a$.)$ Find minimum and maximum cable force. $(15$p$)$

b$.)$ Find cable force at C$.(5$p$)$
