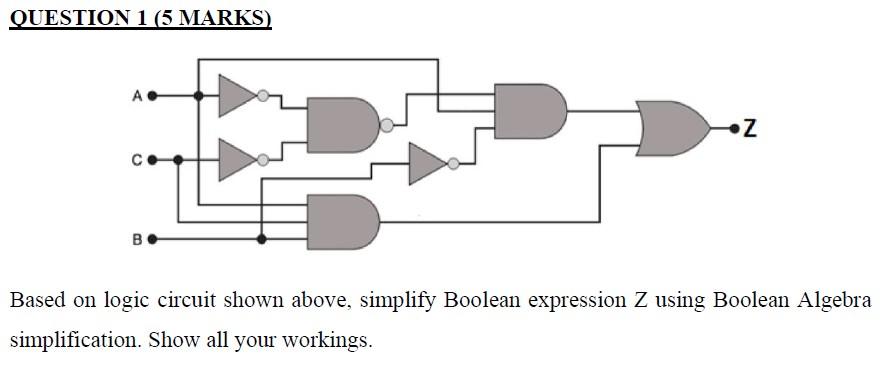

Question: QUESTION 1 (5 MARKS) A N B Based on logic circuit shown above, simplify Boolean expression Z using Boolean Algebra simplification. Show all your workings.

QUESTION 1 (5 MARKS) A N B Based on logic circuit shown above, simplify Boolean expression Z using Boolean Algebra simplification. Show all your workings. QUESTION 2 (4 MARKS) ME NE D EZ PG Convert

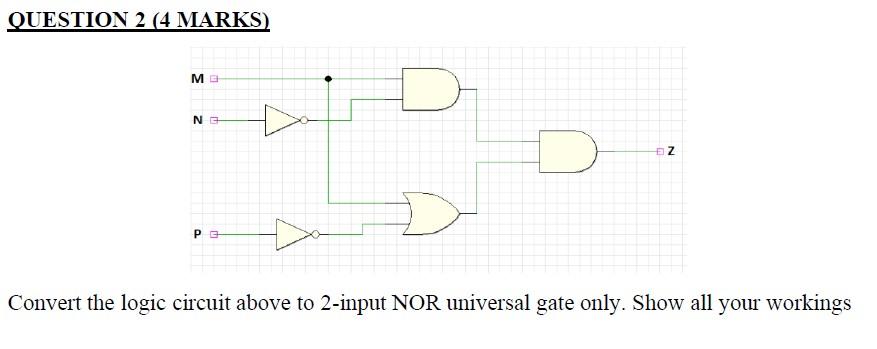

QUESTION 1 (5 MARKS) A N B Based on logic circuit shown above, simplify Boolean expression Z using Boolean Algebra simplification. Show all your workings. QUESTION 2 (4 MARKS) ME NE D EZ PG Convert the logic circuit above to 2-input NOR universal gate only. Show all your workings QUESTION 3 (3 MARKS) BE EF . Convert and simplify the NAND universal circuit above to basic gates (AND, OR, NOT) using dual symbol. Show all your workings
