Question: Question 1 (6 marks) Two cables are attached to a wall by a pin at O with the tensions in the cables adjusted to

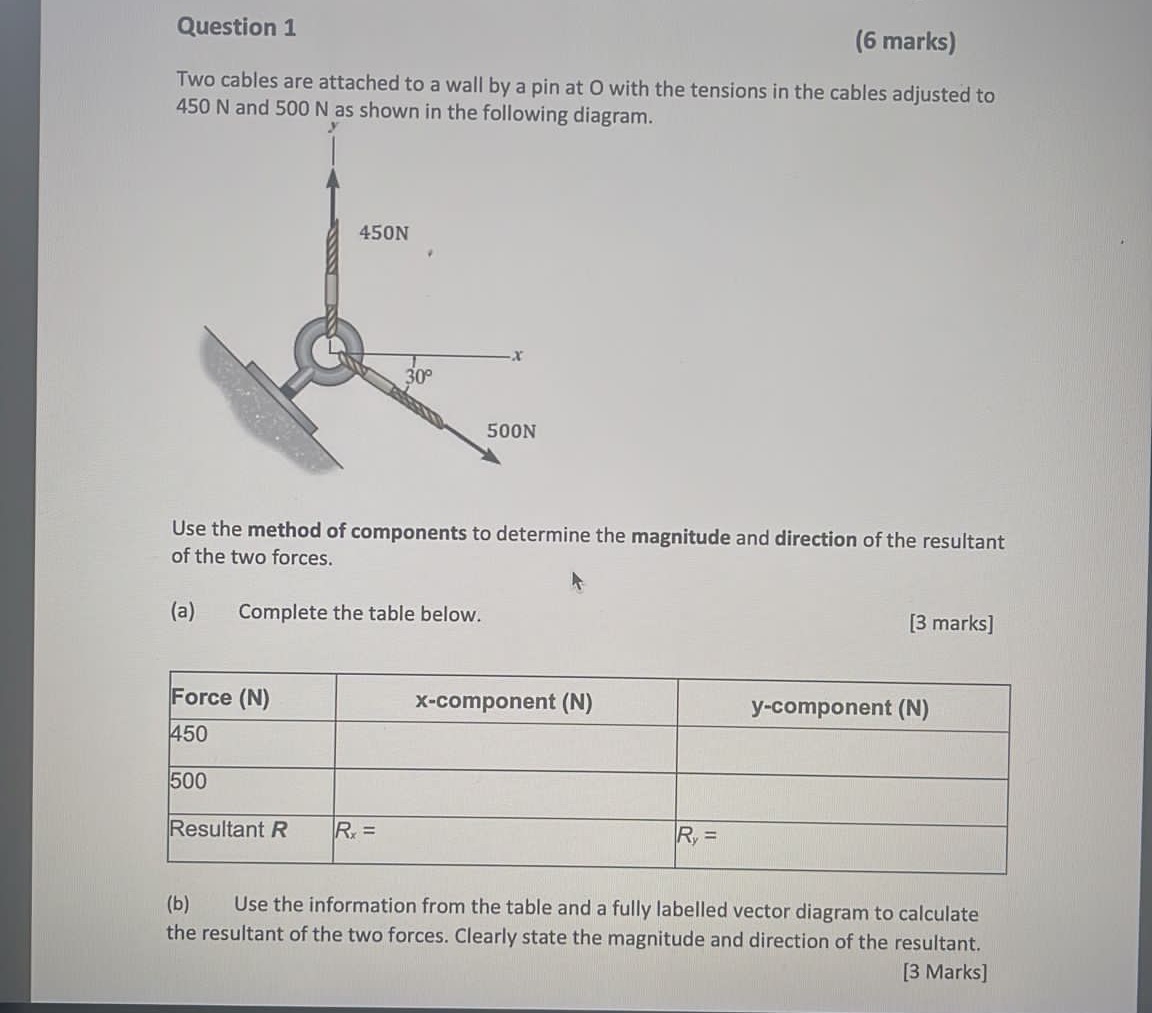

Question 1 (6 marks) Two cables are attached to a wall by a pin at O with the tensions in the cables adjusted to 450 N and 500 N as shown in the following diagram. 450N 30 500N Use the method of components to determine the magnitude and direction of the resultant of the two forces. (a) Complete the table below. Force (N) 450 500 Resultant R Rx= [3 marks] x-component (N) y-component (N) Ry= (b) Use the information from the table and a fully labelled vector diagram to calculate the resultant of the two forces. Clearly state the magnitude and direction of the resultant. [3 Marks]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Solutions Step 1 Given data Pin at O with tension Find Resultant and its ... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
