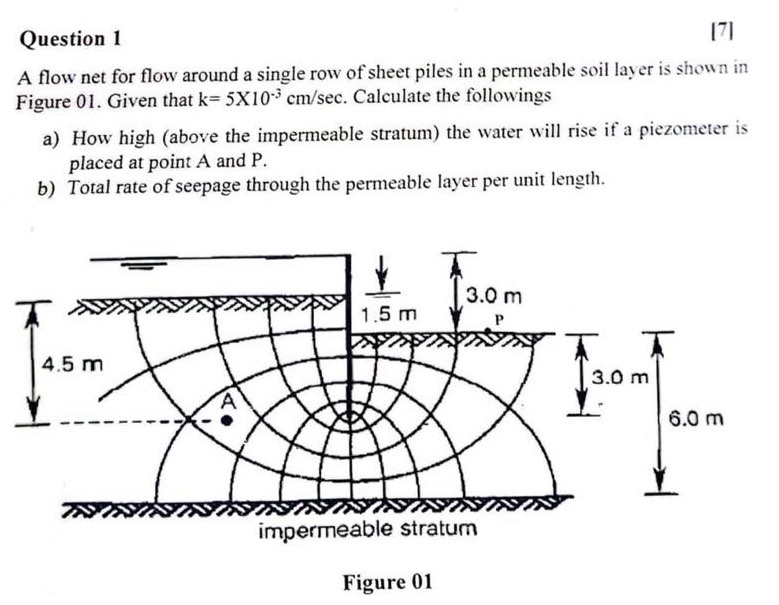

Question $1$

A flow net for flow around a single row of sheet piles in a permeable soil layer is shown in

Figure $01.$ Given that $k=5{10}^{-3}c\frac{m}{sec}.$ Calculate the followings

a$)$ How high $($above the impermeable stratum$)$ the water will rise if a piezometer is

placed at point A and $P.$

b$)$ Total rate of seepage through the permeable layer per unit length.

Figure $01$
