Question: Question 1 As refer to the Figure 1 , develop the equations to calculate shear force and moment along the beam AE and, hence, draw

Question 1

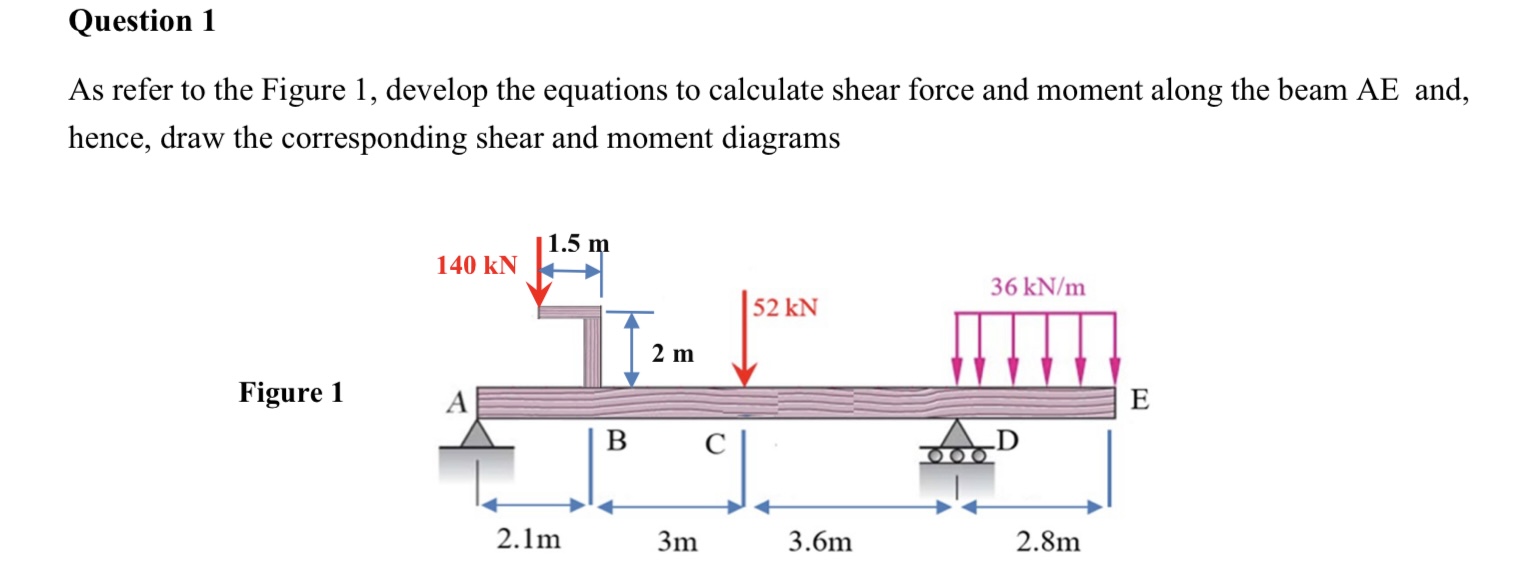

As refer to the Figure 1, develop the equations to calculate shear force and moment along the beam AE and, hence, draw the corresponding shear and moment diagrams
Figure
Question 1 As refer to the Figure 1 , develop the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
