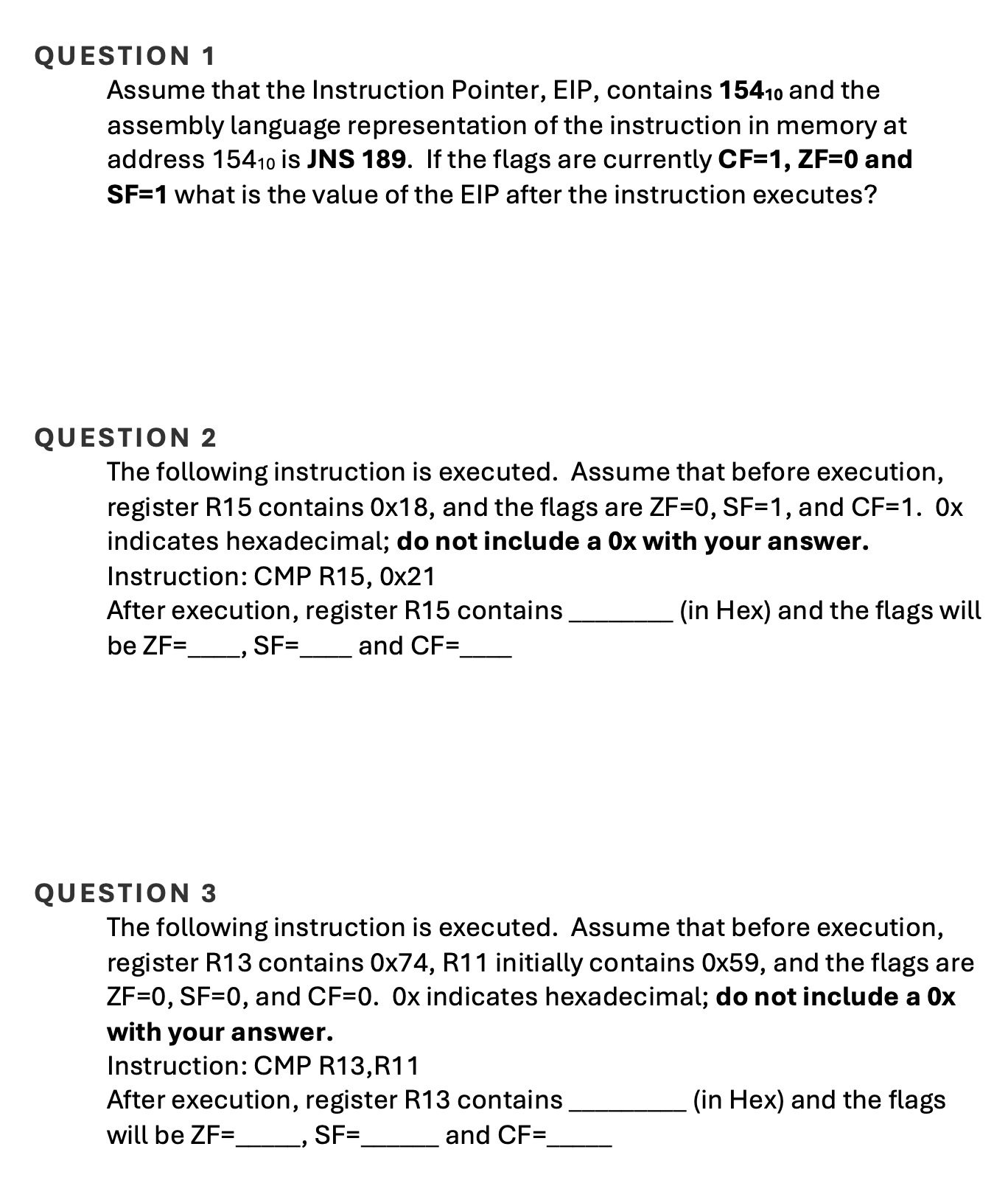

QUESTION $1$

Assume that the Instruction Pointer, EIP, contains ${154}_{10}$ and the assembly language representation of the instruction in memory at address ${154}_{10}$ is JNS $189.$ If the flags are currently $CF=1,ZF=0$ and $SF=1$ what is the value of the EIP after the instruction executes?

QUESTION $2$

The following instruction is executed. Assume that before execution, register $R15$ contains $018,$ and the flags are $ZF=0,SF=1,$ and $CF=1.0x$ indicates hexadecimal; do not include a $0x$ with your answer.

Instruction: CMP R$15,0$x$21$

After execution, register R$15$ contains $($in Hex $)$ and the flags will be $ZF=,SF=,$ and $CF=q,$

QUESTION $3$

The following instruction is executed. Assume that before execution, register $R13$ contains $074,R11$ initially contains $059,$ and the flags are $ZF=0,SF=0,$ and $CF=0.0x$ indicates hexadecimal; do not include a $0x$ with your answer.

Instruction: CMP R$13,$R$11$

After execution, register $R13$ contains

$($in Hex$)$ and the flags will be $ZF=,SF=,$ and $CF=q,$
