Question $1$

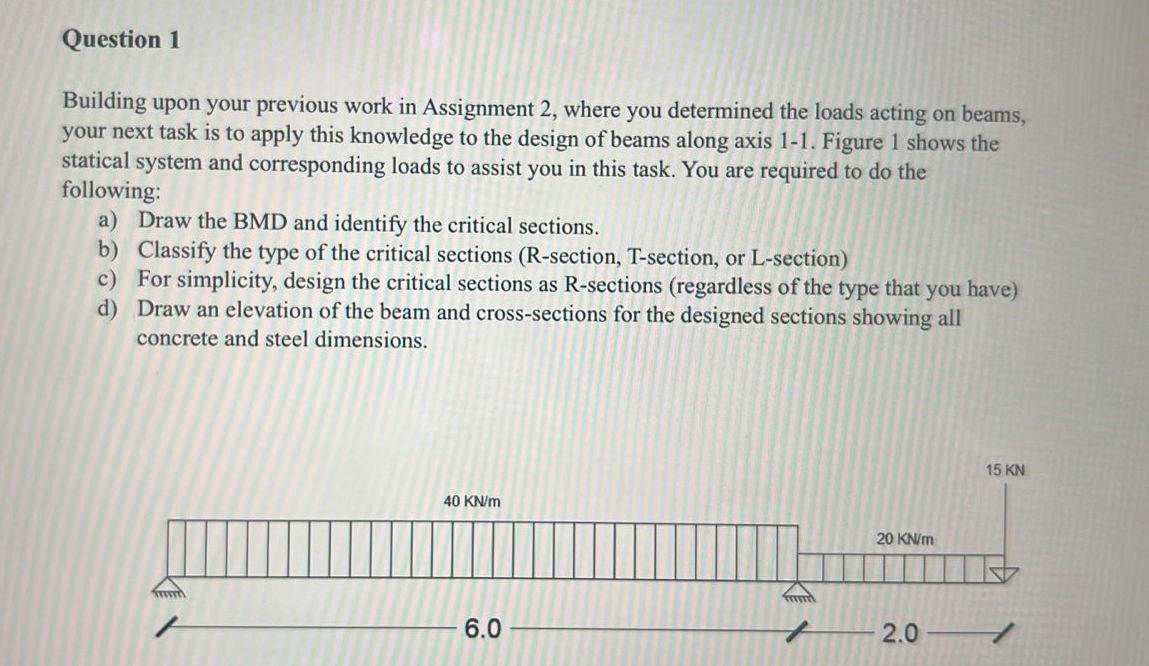

Building upon your previous work in Assignment $2,$ where you determined the loads acting on beams, your next task is to apply this knowledge to the design of beams along axis $1-1.$ Figure $1$ shows the statical system and corresponding loads to assist you in this task. You are required to do the following:

a$)$ Draw the BMD and identify the critical sections.

b$)$ Classify the type of the critical sections $($R$-$section, T$-$section, or L$-$section$)$

c$)$ For simplicity, design the critical sections as R$-$sections $($regardless of the type that you have$)$

d$)$ Draw an elevation of the beam and cross$-$sections for the designed sections showing all concrete and steel dimensions.
