Question: Question 1: C C C C C C O C C C All the capacitors in the figure shown above are identical, with O =1

Question 1:

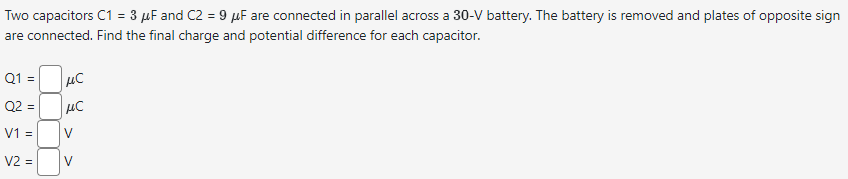

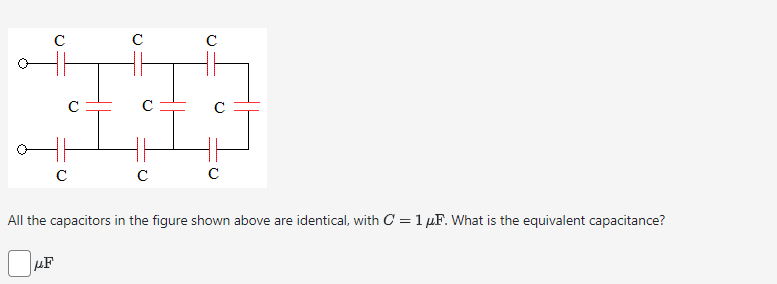

C C C C C C O C C C All the capacitors in the figure shown above are identical, with O =1 pF. What is the equivalent capacitance?Two capacitors C1 = 3 /F and C2 = 9 /F are connected in parallel across a 30-V battery. The battery is removed and plates of opposite sign are connected. Find the final charge and potential difference for each capacitor. Q1 = LLC Q2 = V1 = V V2 = V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
