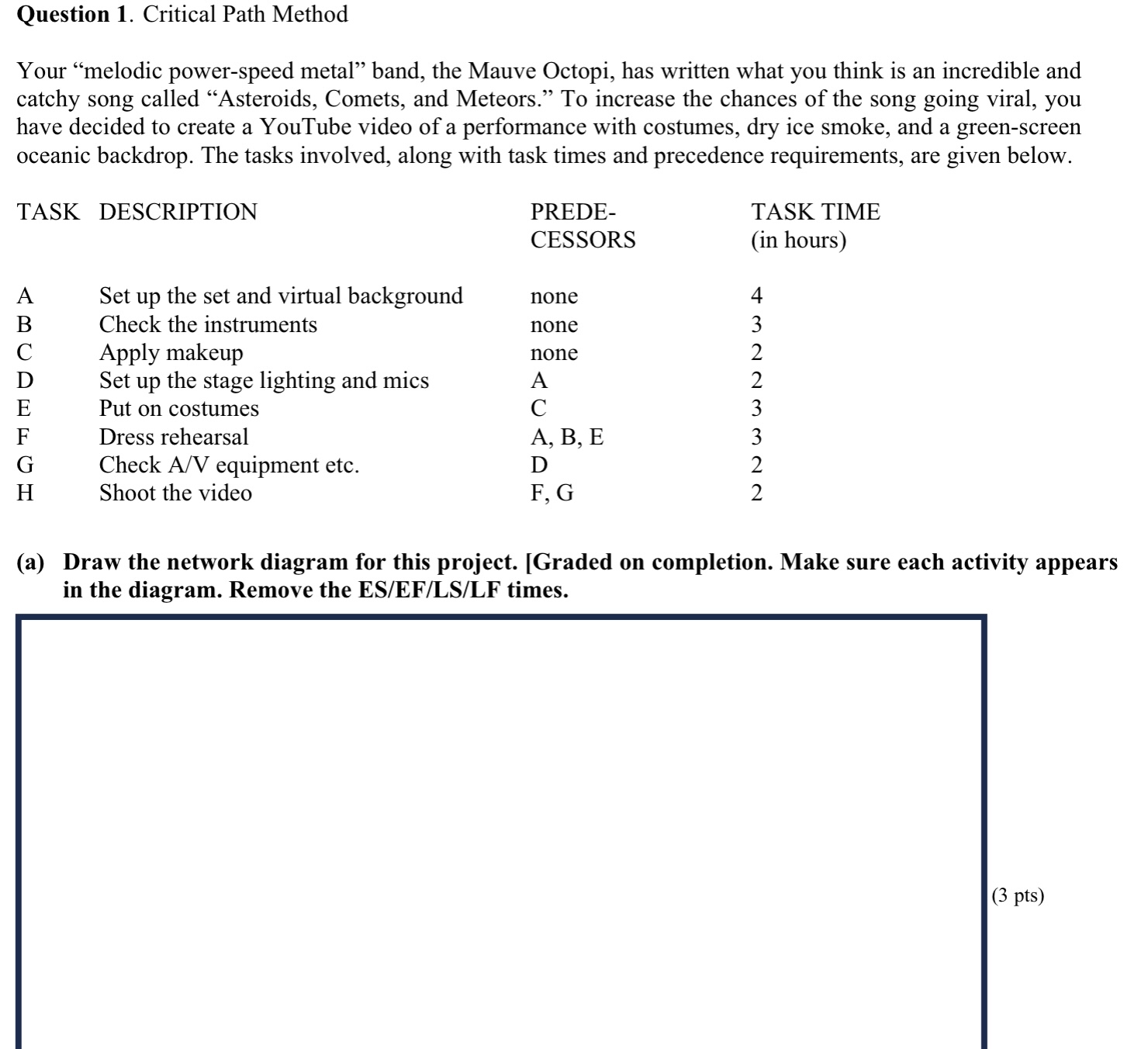

Question $1.$ Critical Path Method $-($ Please make or draw the diagram example instead of just telling me how to draw it would be greatly appreciated. $)$

Your "melodic power$-$speed metal" band, the Mauve Octopi, has written what you think is an incredible and catchy song called "Asteroids, Comets, and Meteors." To increase the chances of the song going viral, you have decided to create a YouTube video of a performance with costumes, dry ice smoke, and a green$-$screen oceanic backdrop. The tasks involved, along with task times and precedence requirements, are given below.

$\backslash$table$[[$TASK$,$DESCRIPTION,$\backslash$table$[[$PREDE$-],[$CESSORS$]],\backslash$table$[[$TA$],[($in$]]],[$A$,$Set up the set and virtual background,none,$4],[$B$,$Check the instruments,none,$3],[$C$,$Apply makeup,none,$2],[$D$,$Set up the stage lighting and mics,A$,2],[$E$,$Put on costumes,C$,3],[$F$,$Dress rehearsal,A$,$ B$,$ E$,3],[$G$,$Check A$/$V equipment etc.,D$,2],[$H$,$Shoot the video,F$,$ G$,2]]$

$($a$)$ Draw the network diagram for this project. $[$Graded on completion. Make sure each activity appears in the diagram. Remove the ES$/$EF$/$LS$/$LF times.

$(3$ pts$)$
