Question

$1)$Develop a user friendly program based on the design illustrated by the class diagram and use case diagram

$2)$ Use another type of UML diagram rather than the class diagram and use a case diagram to illustrate the design.Instructions

A Tic Tac Toe game is classical which is played in a $33$ grid by two player sides, $x$ and $O.$

One side is won if obtains $3$ in a line $($including diagonal$).$ Figure $1$ shows the class diagram for

the Tic Tac Toe game. Based on the class diagram given, construct a use case diagram and

develop a Tic Tac Toe game based on the class diagram and use case diagram.

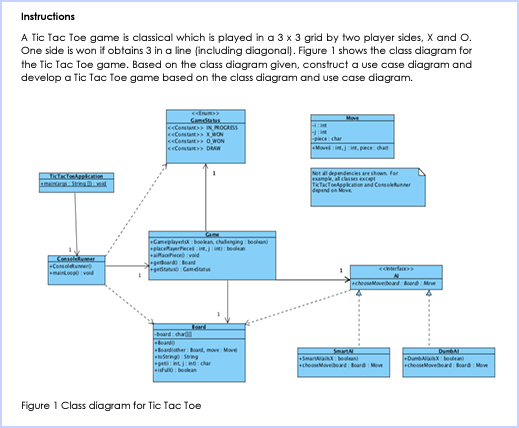

Figure $1$ Class diagram for Tic Tac Toe
