Question $1-$ Finite Element Analysis $-$ this needs to be done using Finite element method FEM for this Fixed Beam Element with point load and udl.

For all elements, EI$=20000$kNm$^(2).$ P $=28$kN and w $=22$ kN$/$m

For the beam shown in Figure Q$3$:

$($i$)$ the equivalent nodal loads due to the uniformly distributed load, w$,$ for elements $1$ and $2.$

$($ii$)$ the vertical displacement and rotation at node $2.$

$($iii$)$ Evaluate the reactions and moments at the supports.

$($iv$)$ Sketch the Shear Force and Bending Moment Diagrams.

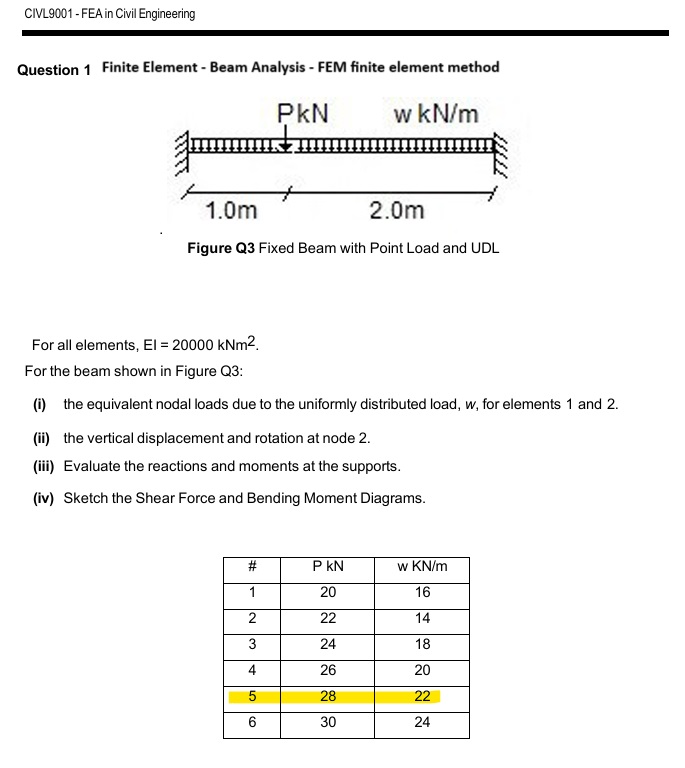

Question $1$ Finite Element $-$ Beam Analysis $-$ FEM finite element method

rigure us rixed beam win roint Load and UUL

For all elements, $\backslash (\backslash$mathrm$\{$EI$\}=20000\backslash$mathrm$\{$kNm$\}\{\}^\{2\}\backslash ).$

For the beam shown in Figure Q$3$:

$($i$)$ the equivalent nodal loads due to the uniformly distributed load, $\backslash ($ w $\backslash ),$ for elements $1$ and $2.$

$($ii$)$ the vertical displacement and rotation at node $2.$

$($iii$)$ Evaluate the reactions and moments at the supports.

$($iv$)$ Sketch the Shear Force and Bending Moment Diagrams.
