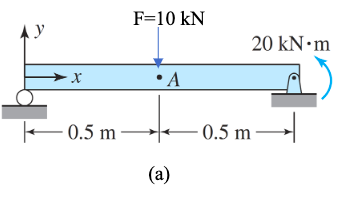

Question: Question 1 . For the beam and loading shown, ( a ) find the bending moment as a function of x using the coordinate system

Question 1. For the beam and loading shown, (a) find the bending moment as a function of x using the
coordinate system shown; (b) find the bending moment as a function of x if the origin is at A (without
rotating the system).
