Question: QUESTION 1 Four capacitors are connected as shown. C1 = 2.00 JF, C2 = 4.00 UF, C3 = 3.00 uF, and C4 = 6.00 uF.

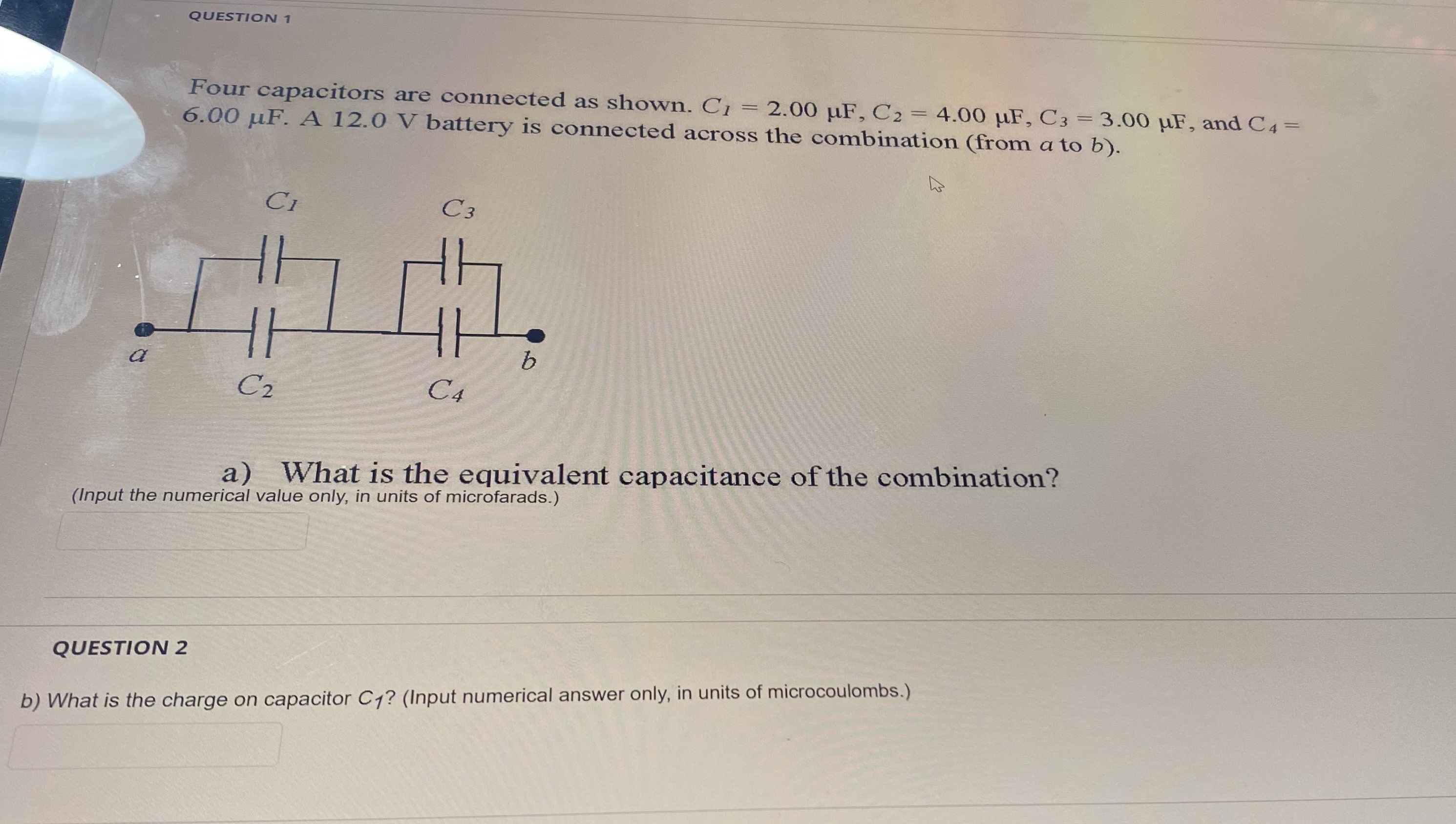

QUESTION 1 Four capacitors are connected as shown. C1 = 2.00 JF, C2 = 4.00 UF, C3 = 3.00 uF, and C4 = 6.00 uF. A 12.0 V battery is connected across the combination (from a to b). CI C3 a b C2 C4 a) What is the equivalent capacitance of the combination? (Input the numerical value only, in units of microfarads.) QUESTION 2 b) What is the charge on capacitor Cy? (Input numerical answer only, in units of microcoulombs.)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

QUESTION 1 Four capacitors are connected as shown. C1 = 2.00 JF, C2 = 4.00 UF, C3 = 3.00 uF, and C4 = 6.00 uF. A 12.0 V battery is connected across the combination (from a to b). C1 C3 b a C2 C4 a)...

Four capacitors are connected as shown. C1 = 2.00 JF, C2 +4.00 UF, C3 = 3.00 uF, and C4 = 6.00 uF. A 12.0 V battery is connected across the combination (from a to b). CI C3 b a C2 C4 a) What is the...

QUESTION 1 Four capacitors are connected as shown. C1 = 2.00 JF, C2 = 4.00 MF, C3 = 3.00 uF, and C4 = 6.00 uF. A 12.0 V battery is connected across the combination (from a to b). CI C3 b a C2...

Four capacitors are connected as shown in the figure below. (C = 14.0 JF.) 3.00 HF 20.0 MF 6.00 JiF (a) Find the equivalent capacitance between points a and b. UF (b) Calculate the charge on each...

Section B [20 marks] 1) Four capacitors are connected as shown in Figure 2. Find the equivalent capacitance between points a and b if C1 = 15.00 JF, C2 = 3.00 UF, C3 = 6.00 uF and C4 = 20.00 LIF. [12...

Course Hero x VA HW6_Capacitors - PHYS 113, sect X + X - C webassign.net/web/Student/Assignment-Responses/submit?dep=31256023&tags=autosave#question4272854_4 GQEKAO 6. [-/5 Points] DETAILS SERCP11...

Four capacitors are connected as shown in the figure below. (Let C = 12.0 pF.) C 3.00 uF 20.0 UF a 6.00 JF (a) Find the equivalent capacitance between points a and b. UF (b) Calculate the charge on...

The figure shows a 24.0 V battery connected to four uncharged capacitors of capacitances C = 2.00 F, C = 4.00 uF, C3 = 6.00 uF, and C4 = 8.00 F. C C3 Sq C2 C4 S F B Switch S is closed. Switch S is...
