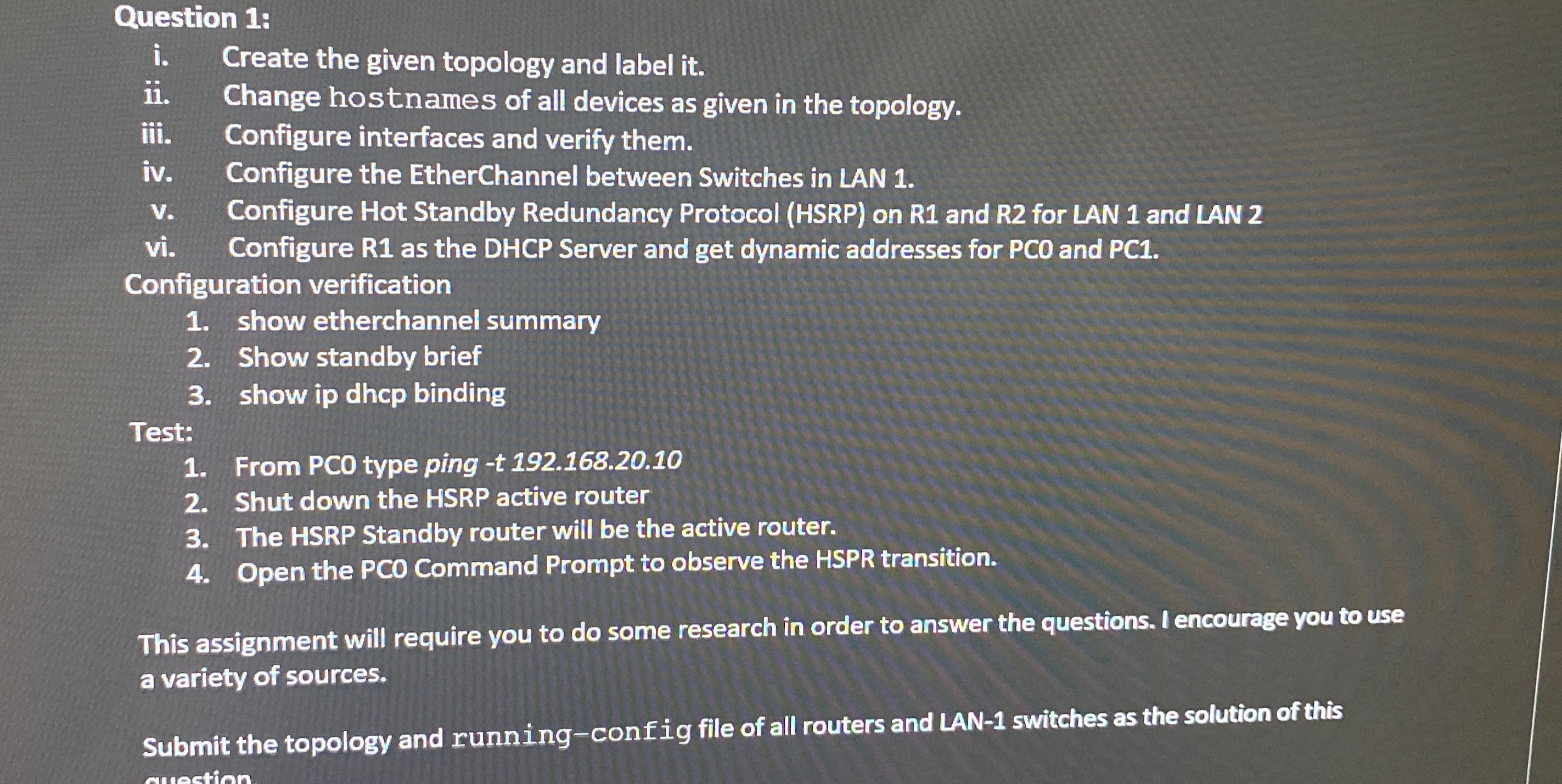

Question $1$:

i$.$ Create the given topology and label it$.$

ii$.$ Change hostnames of all devices as given in the topology.

iii. Configure interfaces and verify them.

iv$.$ Configure the EtherChannel between Switches in LAN $1.$

v$.$ Configure Hot Standby Redundancy Protocol $($HSRP$)$ on R$1$ and R$2$ for LAN $1$ and LAN $2$

vi$.$ Configure R$1$ as the DHCP Server and get dynamic addresses for PCO and PC$1.$

Configuration verification

show etherchannel summary

Show standlby brief

show ip dhep binding

Test:

From PCO type ping $-t192\mathrm{.}168\mathrm{.}20\mathrm{.}10$

Shut down the HSRP active router

The HSRP Standby router will be the active router.

Open the PCO Command Prompt to observe the HSPR transition.

This assignment will require you to do some research in order to answer the questions. I encourage you to use a variety of sources.

Submit the topology and running$-$config file of all routers and LAN$-1$ switches as the solution of this
