Question 1: MOS, complete 3-input truth table

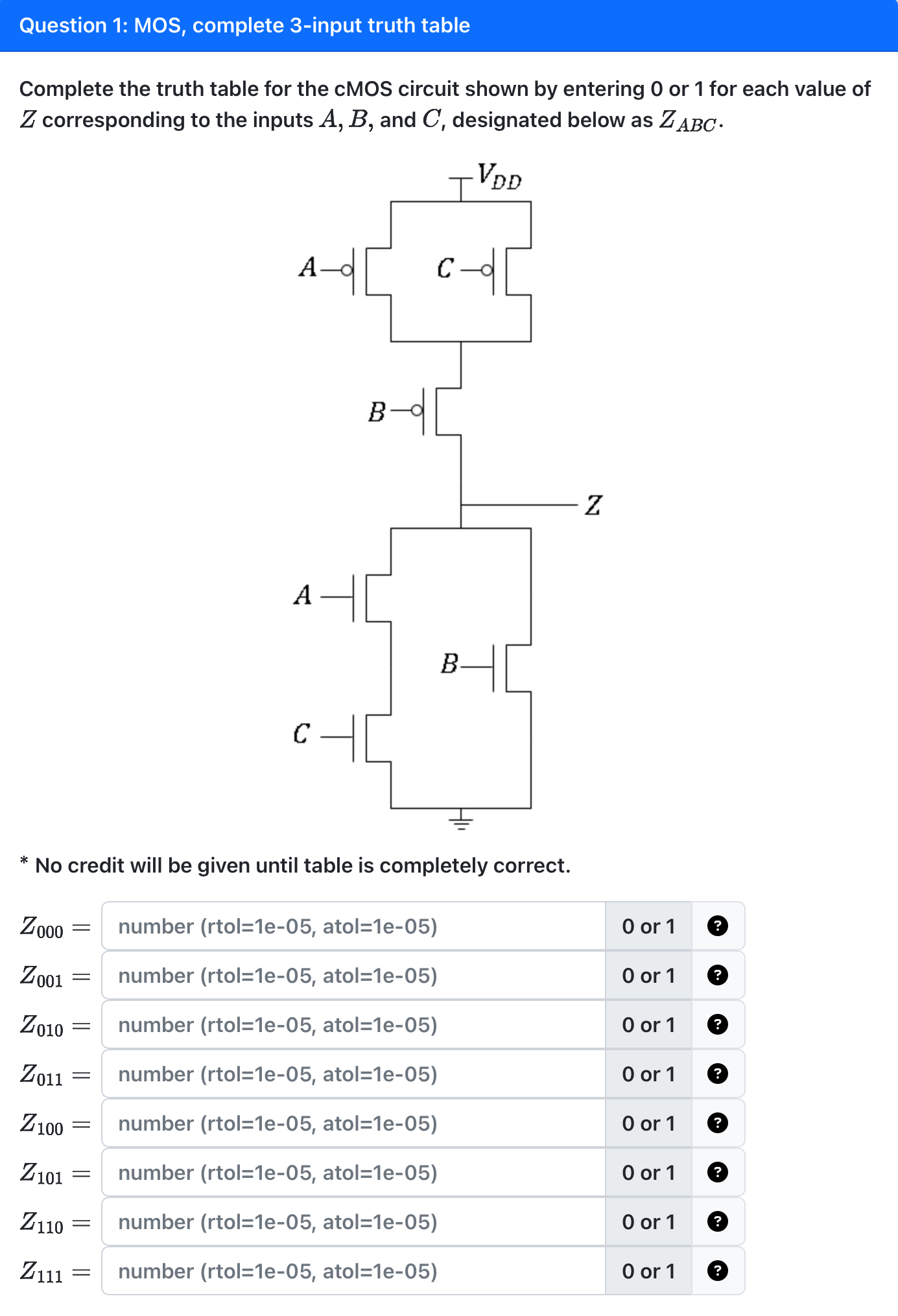

Complete the truth table for the cMOS circuit shown by entering 0 or 1 for each value of Z corresponding to the inputs A,B, and C, designated below as ZABC.
No credit will be given until table is completely correct.
\table[[Z000=,number (rtol=1e-05, atol=1e-05),0 or 1,?],[Z001=,number (rtol=1e-05, atol=1e-05),0 or 1,?],[Z010=,number (rtol=1e-05, atol=1e-05),0 or 1,?],[Z011=,number (rtol=1e-05, atol=1e-05),0 or 1,?],[Z100=,number (rtol=1e-05, atol=1e-05),0 or 1,?],[Z101=,number (rtol=1e-05, atol=1e-05),0 or 1,?],[Z110=,number (rtol=1e-05, atol=1e-05),0 or 1,?],[Z111=,number (rtol=1e-05, atol=1e-05),0 or 1,?]]
