Question: Question ? ? ? ( 1 point ) Listen The bent rod which is supported by a hinge at B and by a collar at

Question ???(1 point)
Listen

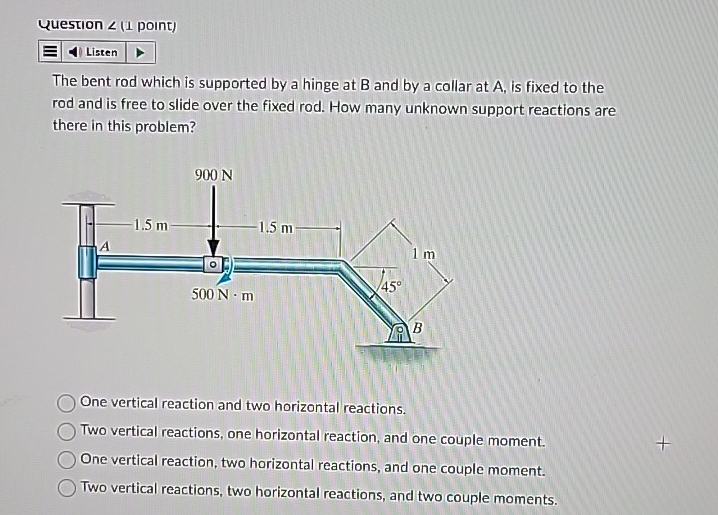

The bent rod which is supported by a hinge at B and by a collar at A, is fixed to the rod and is free to slide over the fixed rod. How many unknown support reactions are there in this problem?
One vertical reaction and two horizontal reactions.
Two vertical reactions, one horizontal reaction, and one couple moment.
One vertical reaction, two horizontal reactions, and one couple moment.
Two vertical reactions, two horizontal reactions, and two couple moments.
Question ? ? ? ( 1 point ) Listen The bent rod

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
