Question: Question 1 : Step response of a second order process is given as follows. Step Response Figure 1 : Step response of a second order

Question 1: Step response of a second order process is given as follows.
Step Response

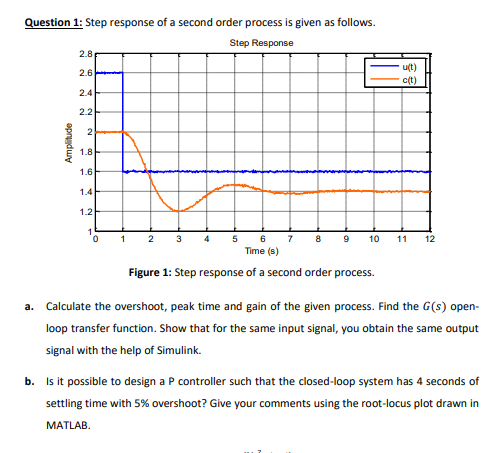

Figure 1: Step response of a second order process.
a. Calculate the overshoot, peak time and gain of the given process. Find the \( G(s)\) openloop transfer function. Show that for the same input signal, you obtain the same output signal with the help of Simulink.
b. Is it possible to design a P controller such that the closed-loop system has 4 seconds of settling time with 5\% overshoot? Give your comments using the root-locus plot drawn in MATLAB.
Question 1 : Step response of a second order

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
