Question: Question 1 The three lines on the following graph represent an orifice, a venturi and a nozzle. Of these three traces, which would most accurately

Question

1

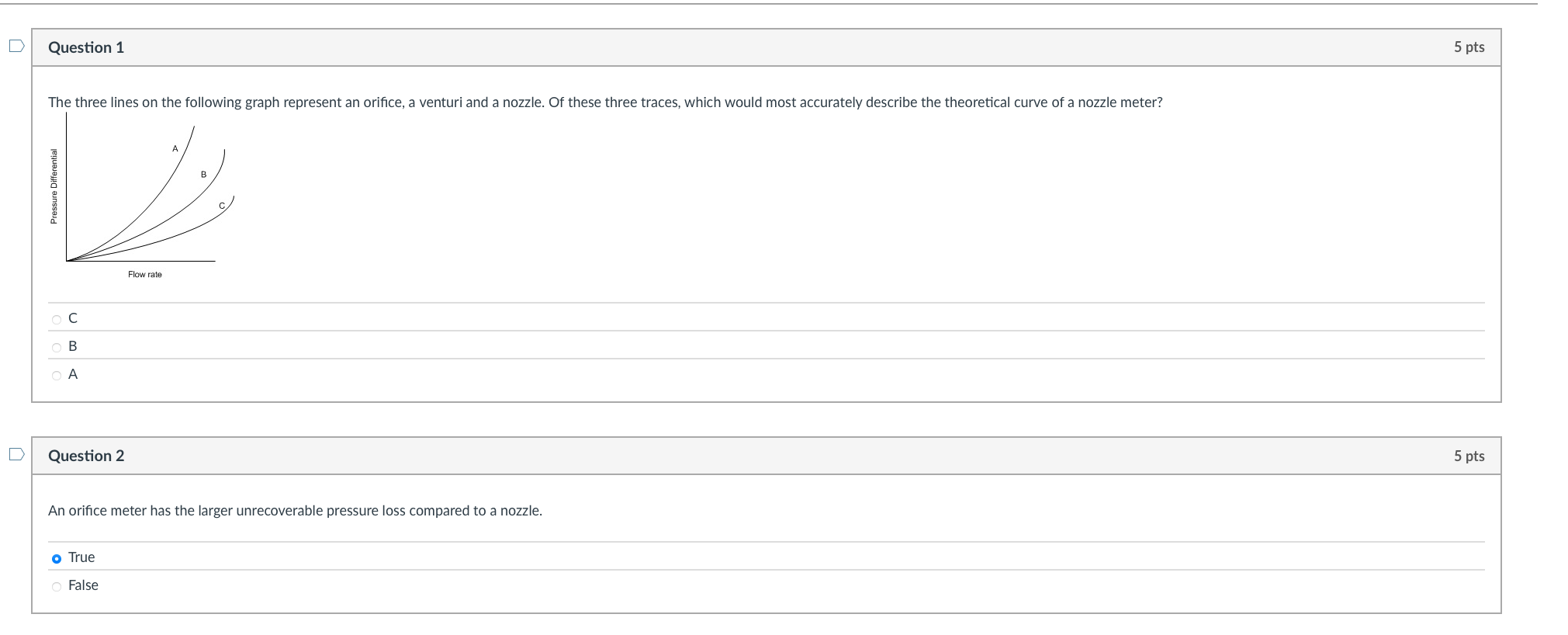

The three lines on the following graph represent an orifice, a venturi and a nozzle. Of these three traces, which would most accurately describe the theoretical curve of a nozzle meter?

Flow rate

Question

2

An orifice meter has the larger unrecoverable pressure loss compared to a nozzle.

True

False

Question 1 The three lines on the following graph

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
