Question: Question 1 : Using Network Diagram 1 , determine the maximum flow from the Source to the Sink in the network. - Assume that all

Question

1

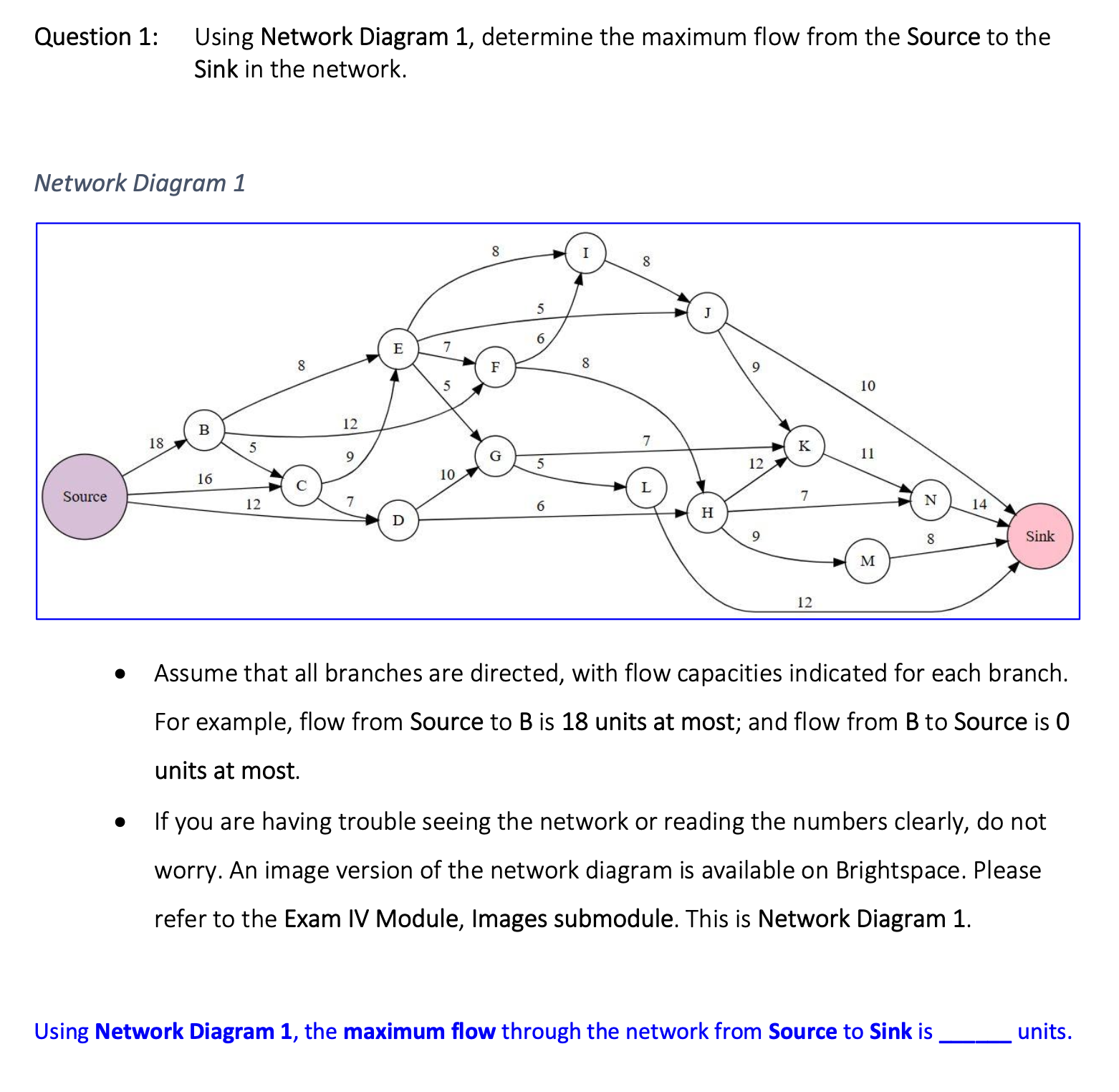

: Using Network Diagram

1,

determine the maximum flow from the Source to the Sink in the network.

-

Assume that all branches are directed, with flow capacities indicated for each branch. For example, flow from Source to B is

18

units at most; and flow from B to Source is

0

units at most.

-

If you are having trouble seeing the network or reading the numbers clearly, do not worry. An image version of the network diagram is available on Brightspace. Please refer to the Exam IV Module, Images submodule. This is Network Diagram

1 .

Using Network Diagram

1,

the maximum flow through the network from Source to Sink is

units.

Question 1 : Using Network Diagram 1 , determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
