Question: Question 1 Using virtual work method, determine the deflection at the point load for the simply supported beam in figure 1 . Take EI =

Question 1

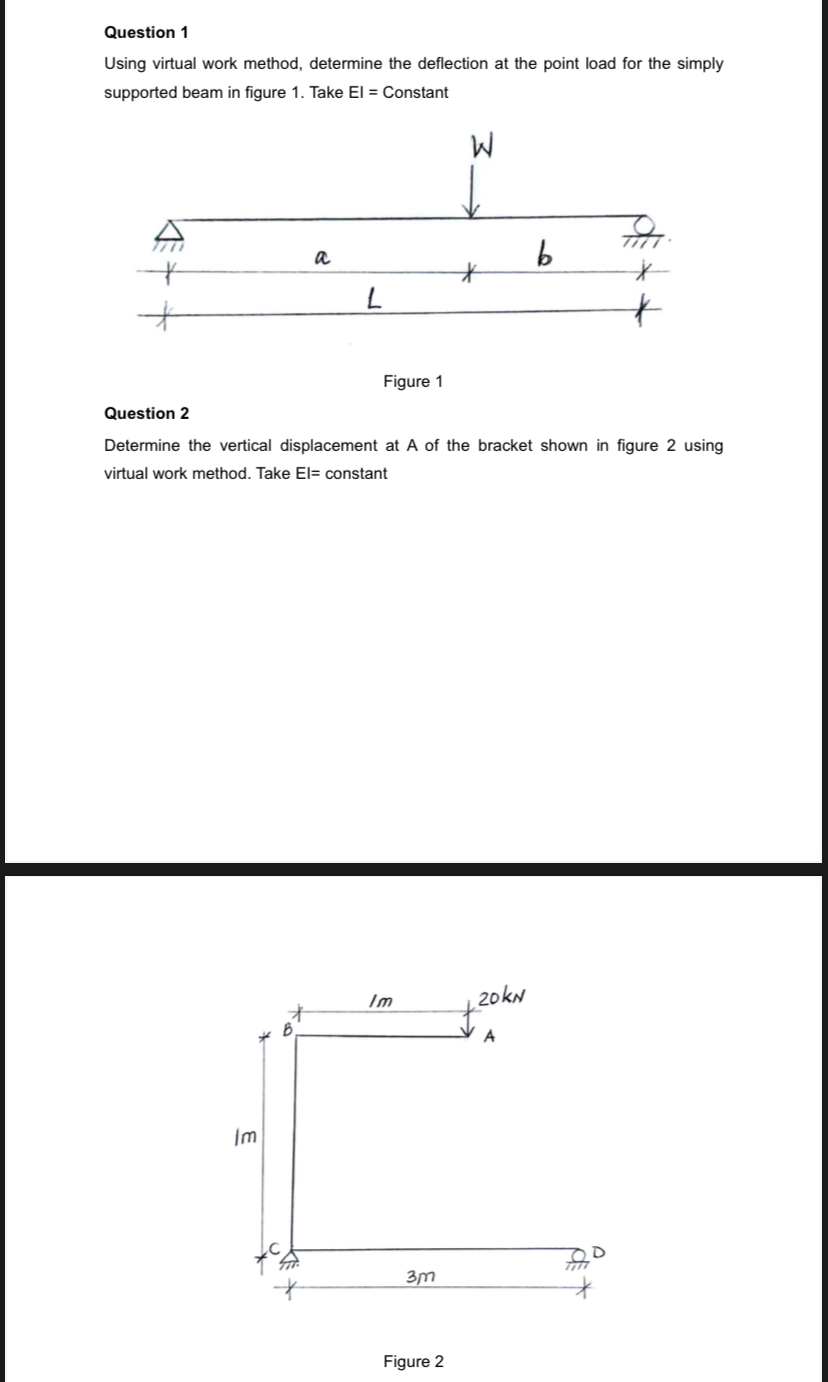

Using virtual work method, determine the deflection at the point load for the simply supported beam in figure 1. Take EI = Constant
Question 2
Determine the vertical displacement at A of the bracket shown in figure 2 using virtual work method. Take El= constant
Figure 2
Question 1 Using virtual work method, determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
