Question: Question 1 : While removing a wheel to change a tire, a driver applies forces P = 3 5 l b at the ends of

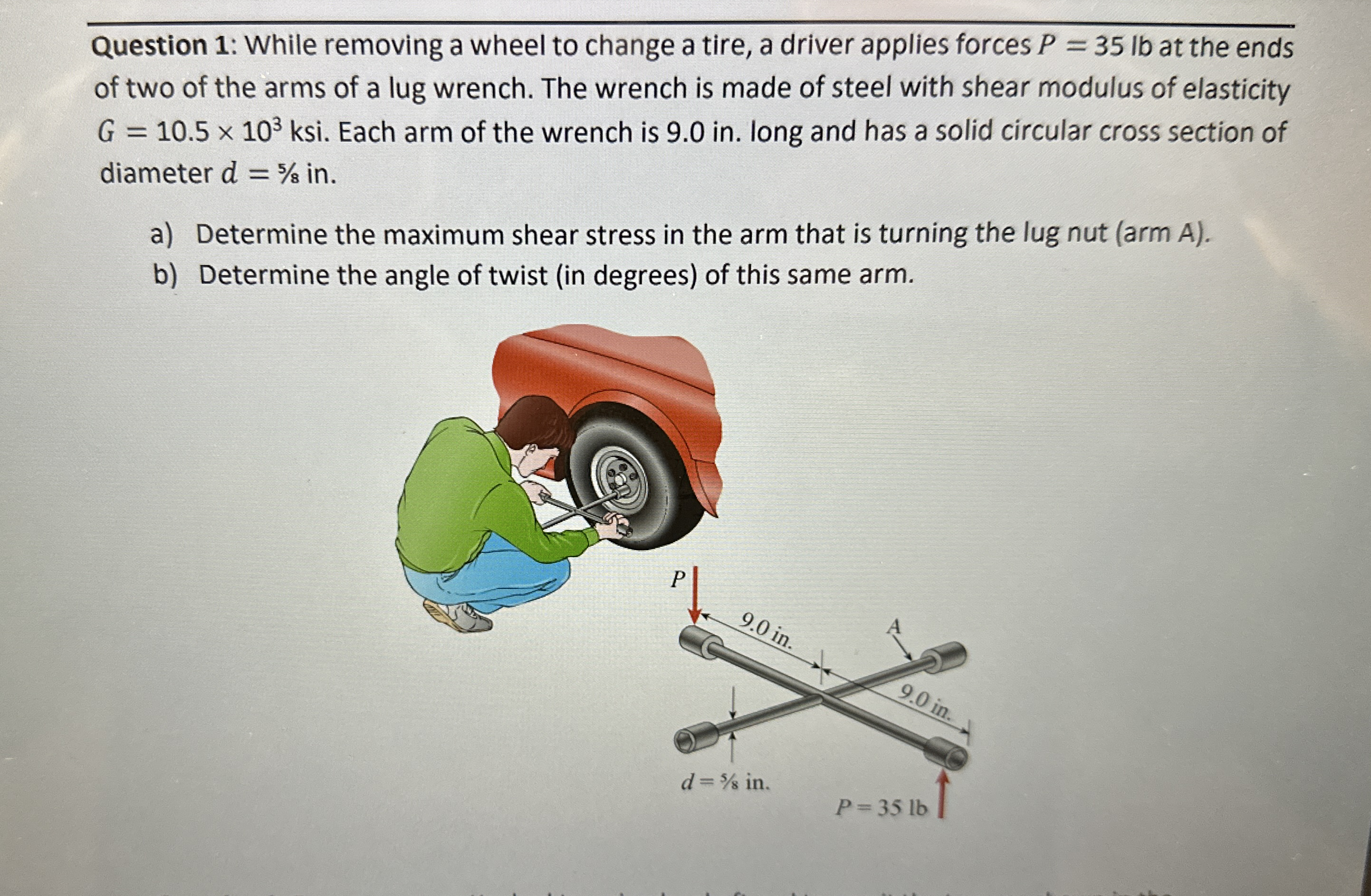

Question 1: While removing a wheel to change a tire, a driver applies forces P=35lb at the ends of two of the arms of a lug wrench. The wrench is made of steel with shear modulus of elasticity G=10.5103ksi. Each arm of the wrench is 9.0 in . long and has a solid circular cross section of diameter d=58 in.
a) Determine the maximum shear stress in the arm that is turning the lug nut (arm A).
b) Determine the angle of twist (in degrees) of this same arm.
Question 1 : While removing a wheel to change a
