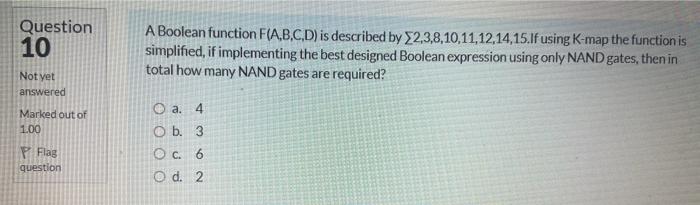

Question: Question 10 Not yet answered A Boolean function F(A,B,C,D) is described by 32.3,8,10,11,12,14,15.1f using K-map the function is simplified, if implementing the best designed Boolean

Question 10 Not yet answered A Boolean function F(A,B,C,D) is described by 32.3,8,10,11,12,14,15.1f using K-map the function is simplified, if implementing the best designed Boolean expression using only NAND gates, then in total how many NAND gates are required? Marked out of 1.00 a. 4 O b. 3 O c. 6 d. 2 Flag

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
