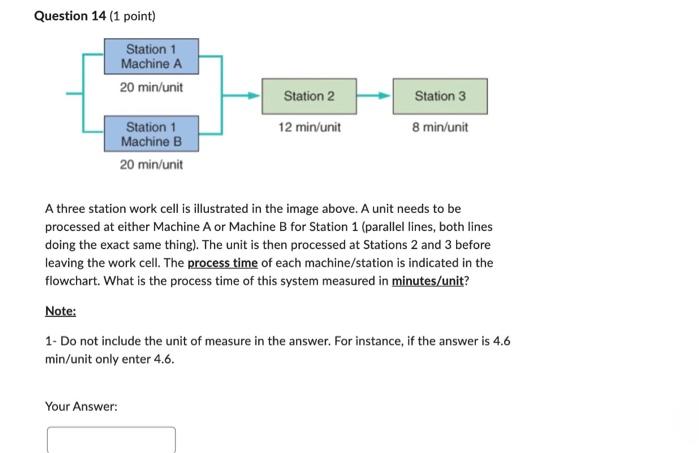

Question 14 (1 point) A three station work cell is illustrated in the image above. A unit needs to be processed at either Machine A or Machine B for Station 1 (parallel lines, both lines doing the exact same thing). The unit is then processed at Stations 2 and 3 before leaving the work cell. The process time of each machine/station is indicated in the flowchart. What is the process time of this system measured in minutes/unit? Note: 1- Do not include the unit of measure in the answer. For instance, if the answer is 4.6 min/ unit only enter 4.6. Your Answer: Qunetinn 7/1 nnint A process is depicted in the picture. After being processed in the first station, a box needs to be processed at either Machine A or Machine B for the parallel line. The box is then processed at Stations 3 and 4 before leaving the production line. The process time of each station/machine is indicated in the flowchart (e.g., 5min/ box means that the process time is 5 minutes to process each box at the machine/station). What is the process cycle time of this system measured in minutes? Note: 1- Do not include the unit of measure in the answer. For instance, if the answer is 4.6 min only enter 4.6. 2- Enter your answer as a decimal number and not a fraction. For instance, if the answer is 1/4 enter 0.25. 3- Round your final answer to 2 decimal places. Your Answer: Consider a manufacturing process depicted by the following flowchart. Station A has 3 parallel operators, A1, A2, and A3. Station C has 2 parallel operators, C1 and C2. Each unit only needs to be processed by one of the operators A1, A2 and A3. After being processed at Station B, a unit then needs to be processed by either C1 or C2. The process time of the individual operators are given as follows. A1,A2, and A3:24 minutes B: 15 minutes C1 and C2:4 minutes. The process initiates the production of a new unit every 25 minutes. What is the utilization of Operator C2 in percentage? Consider a manufacturing process depicted by the following flowchart. Station A has 3 parallel operators, A1, A2, and A3. Station C has 2 parallel operators, C1 and C2. Each unit only needs to be processed by one of the operators A1, A2 and A3. After being processed at Station B, a unit then needs to be processed by either C1 or C2. The process time of the individual operators are given as follows. Each of A1, A2, and A3: 11 minutes B: 14 minutes Either of C1 and C2: 6 minutes. What is the capacity (in units/hour) of the whole process? Round your final answer to 2 decimal places if it is not a whole number. A production process is shown in the figure above. The drilling operation occurs separately from, and simultaneously with the sawing and sanding operations. Welding starts when both drilling and sanding operations have been completed. After welding, a product needs to go through only one of the three assembly operations (the operations are in parallel, where parallel lines perform the exact same operation). Considering the process times at stations, what is the process cycle time of the system (in minutes)? Note: 1- Do not include the unit of measurement in your answer. For instance, if the answer is 15min only enter 15 . A manufacturing plant has four stations in the assembly line (illustrated in the image above). A unit needs to be processed at either Machine A or Machine B for Station 2 (parallel lines, both lines performing the same operations). The box is then processed at Station 3. After that, the unit needs to be processed at either Machine A, Machine B or Machine C in Station 4 before leaving the production line. The process time of each station/machine is indicated in the flowchart. What is the capacity rate of this system measured in units/minutes? 0.08 units/minute 3 units/minute 0.05 units/minute 20 units/minute Nubetion 25 (1 nnintl A production process is shown in the figure above. The drilling operation occurs separately from, and simultaneously with the sawing and sanding operations. Welding starts when both drilling and sanding operations have been completed. After welding, a product needs to go through only one of the three assembly operations (the operations are in parallel, where parallel lines perform the exact same operation). Currently, the production process generate outputs at the rate of 1.5 units/hour. What is the utilization of the "Drilling" station? Note: Question 15 (1 point) A three station work cell is illustrated in the image above. A unit needs to be processed at either Machine A or Machine B for Station 1 (parallel lines, both lines doing the exact same thing). The unit is then processed at Stations 2 and 3 before leaving the work cell. The process time of each machine/station is indicated in the flowchart. What is the capacity rate of this system measured in units/min? Note: 1- Do not include the unit of measure in the answer. For instance, if the answer is 4.6 units/min only enter 4.6. 2- Enter your answer as a decimal number and not a fraction. For instance, if the answer is 1/4 enter 0.25. 3- Round your final answer to 2 decimal places. Question 20 (1 point) A process is depicted in the picture. After being processed in the first station, a box needs to be processed at either Machine A or Machine B for the parallel line. The box is then processed at Stations 3 and 4 before leaving the production line. The process time of each station/machine is indicated in the flowchart (e.g., 5min/ box means that the process time is 5 minutes to process each box at the machine/station). What is the capacity rate of this system measured in boxes /min ? Note: 1- Do not include the unit of measure in the answer. For instance, if the answer is 4.6 units/min only enter 4.6. 2- Enter your answer as a decimal number and not a fraction. For instance, if the answer is 1/4 enter 0.25. 3- Round your final answer to 2 decimal places. Your
