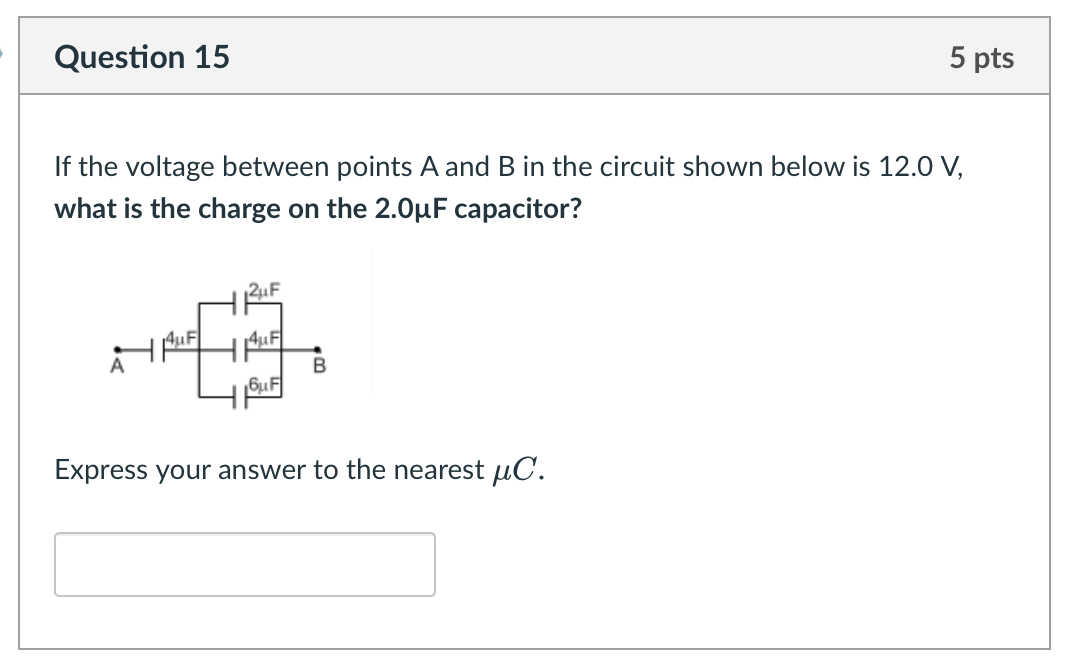

Question: Question 15 5 pts If the voltage between points A and B in the circuit shown below is 12.0 V, what is the charge on

Question 15 5 pts If the voltage between points A and B in the circuit shown below is 12.0 V, what is the charge on the 2.0uF capacitor? Express your answer to the nearest #0. Question 16 5 pts In the circuit shown, 61 = 6.0 V, R1 = 2.0 Q, and R2 = 3.0 Q. What is the magnitude of the current through R2 in the center branch? Express your answer in A, to at least one digit after the decimal point. Question 13 5 pts Consider the circuit below: 20m 201m: \"2 1A 2A* Determine the quantity (V1 - V3). Express your answer to the nearest volt
