Question: Question 15 A wire with resistivity p, diameter D, and length L is connected to a voltage source such that the voltage between points A

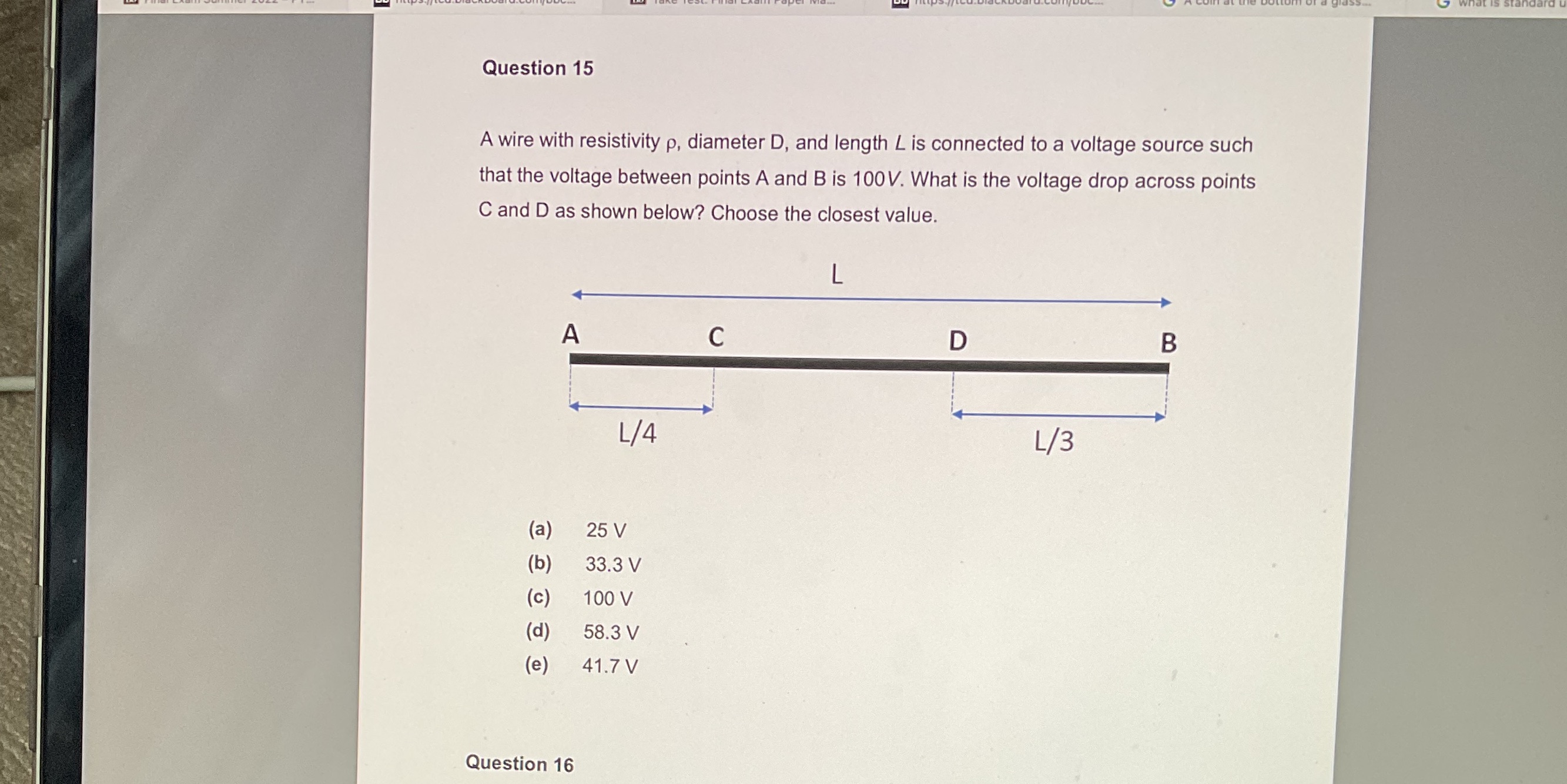

Question 15 A wire with resistivity p, diameter D, and length L is connected to a voltage source such that the voltage between points A and B is 100V. What is the voltage drop across points C and D as shown below? Choose the closest value. L A C D B L/4 L/3 25 V (D) 33.3 V ( C ) 100 V (d) 58.3 V (e) 41.7 V Question 16

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
