Question: Question 16 Consider the planar kinematic system shown below. Which two of the following diagrams correctly represent an expansion of the ternary joint of the

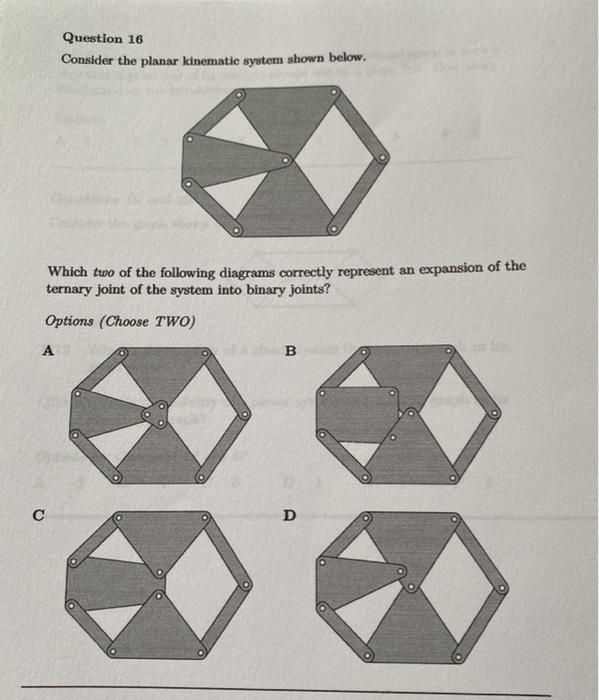

Question 16 Consider the planar kinematic system shown below. Which two of the following diagrams correctly represent an expansion of the ternary joint of the system into binary joints? Options (Choose TWO) A B D

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
