Question: Question 2 0 ( 3 . 7 points ) Apply mesh analysis to find the mesh currents in the circuit. Use the information to determine

Question 20(3.7 points)

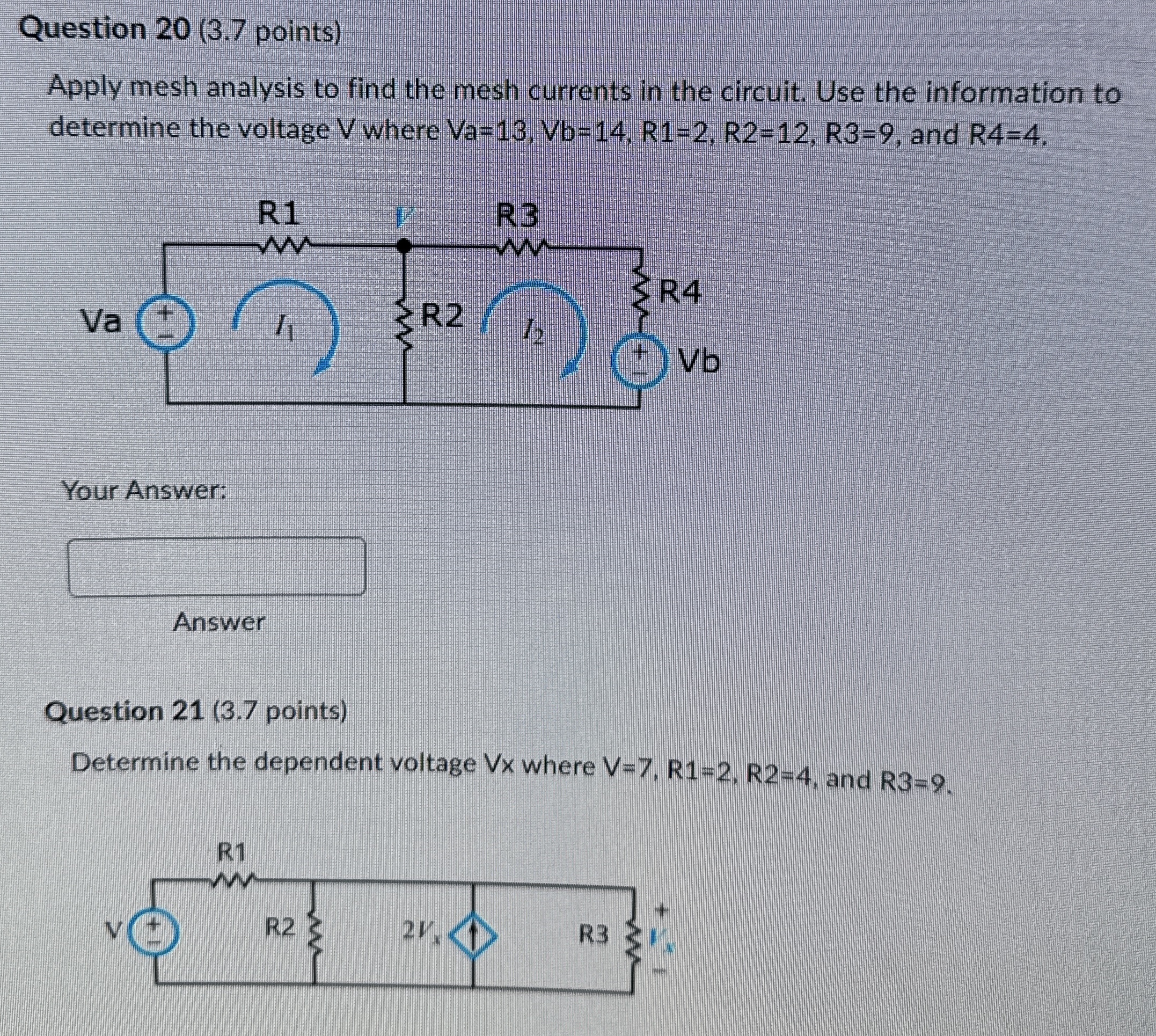

Apply mesh analysis to find the mesh currents in the circuit. Use the information to determine the voltage V where Va=13,Vb=14,R1=2,R2=12,R3=9, and R4=4.
Your Answer:
Answer
Question 21(3.7 points)
Determine the dependent voltage V where V=7,R1=2,R2=4, and R3=9.
Question 2 0 ( 3 . 7 points ) Apply mesh analysis

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
