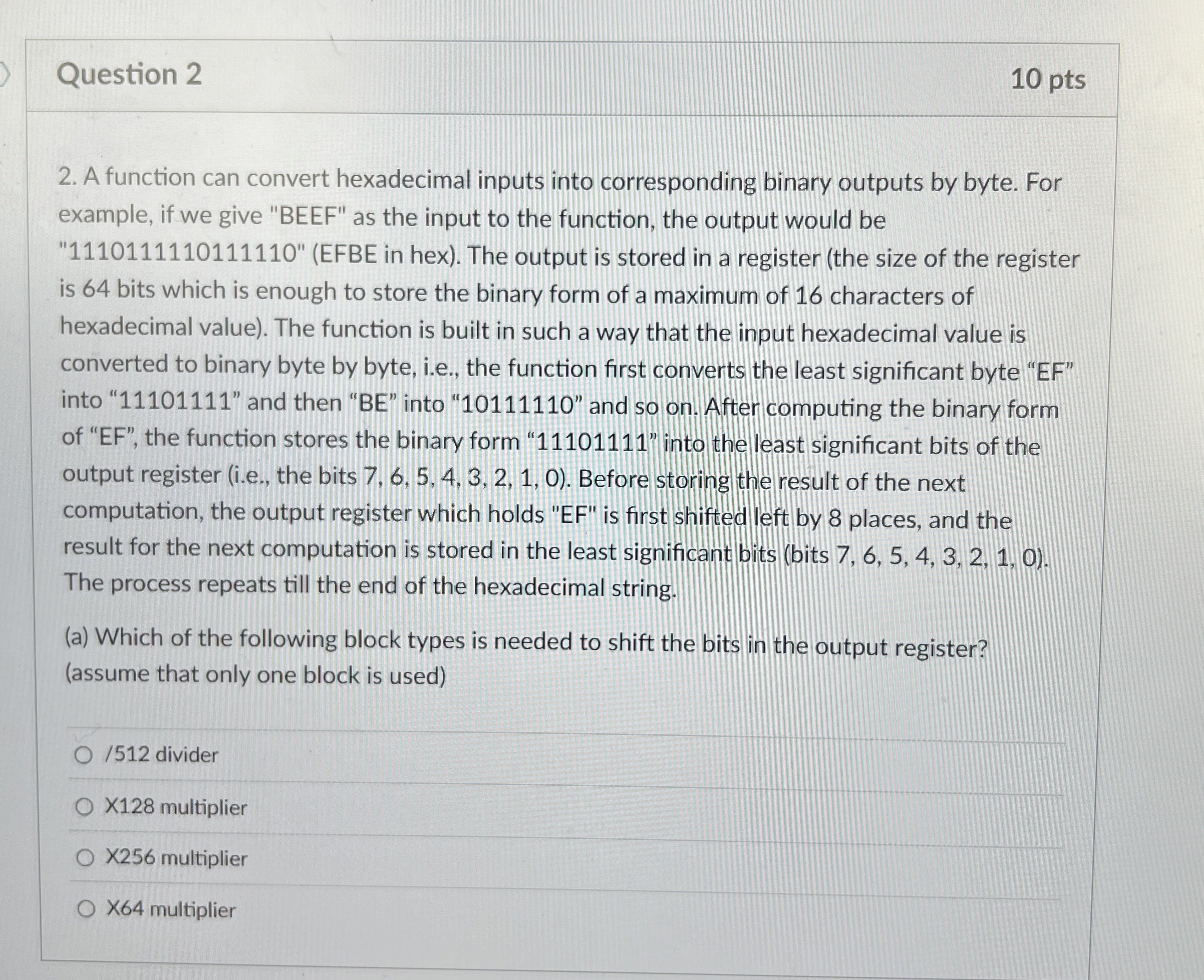

Question $2$

$10$ pts

A function can convert hexadecimal inputs into corresponding binary outputs by byte. For

example, if we give "BEEF" as the input to the function, the output would be

$"1110111110111110"($EFBE in hex$).$ The output is stored in a register $($the size of the register

is $64$ bits which is enough to store the binary form of a maximum of $16$ characters of

hexadecimal value$).$ The function is built in such a way that the input hexadecimal value is

converted to binary byte by byte, i$.$e$.,$ the function first converts the least significant byte $"$EF$"$

into $"11101111"$ and then $"$BE$"$ into $"10111110"$ and so on$.$ After computing the binary form

of $"$EF$",$ the function stores the binary form $"11101111"$ into the least significant bits of the

output register $($i$.$e$.,$ the bits $7,6,5,4,3,2,1,0).$ Before storing the result of the next

computation, the output register which holds $"$EF$"$ is first shifted left by $8$ places, and the

result for the next computation is stored in the least significant bits $($bits $7,6,5,4,3,2,1,0).$

The process repeats till the end of the hexadecimal string.

$($a$)$ Which of the following block types is needed to shift the bits in the output register?

$($assume that only one block is used$)$

$1512$ divider

X$128$ multiplier

X$256$ multiplier

X$64$ multiplier
